Description
Introduction

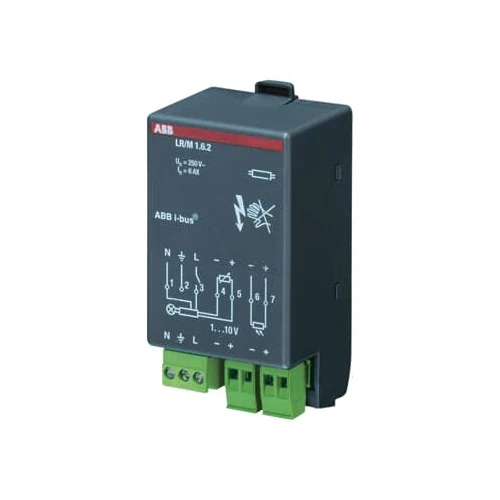

The ABB LR/M1.6.2 is a 1-fold light controller module in the KNX Actuators category, designed to enable switching and dimming of one group of luminaires via a 1…10 V control voltage.
For KNX consultants, installers, integrators, and procurement teams, SKU LR/M1.6.2 provides a clearly identifiable ABB product with Product ID 2CDG110108R0011, EAN 4016779680677, and catalog description LR/M1.6.2 Light Controller Module, 1-fold, 6 AX.
Key Features
- Brand: ABB.
- SKU and extended product type: LR/M1.6.2.
- Product ID: 2CDG110108R0011.
- Catalog description: LR/M1.6.2 Light Controller Module, 1-fold, 6 AX.
- Number of outputs: 1.
- Manual operation: No.
- Transmission standard: Twisted Pair Wiring.
- Terminal type: Bus Connection.
Benefits
- Controls one group of luminaires, supporting project areas where a single lighting group must be switched and dimmed.
- Uses a 1…10 V control voltage for dimming, as stated in the ABB product data.
- Can be used for constant lighting control in connection with a Light Sensor LF/U 2.1.
- Identified by exact ABB references including SKU LR/M1.6.2, Product ID 2CDG110108R0011, and EAN 4016779680677 for accurate BOQ and purchase-order matching.
- Listed with Twisted Pair Wiring transmission standard and Bus Connection terminal type for KNX project documentation.
- No batteries are listed for the product, supporting straightforward procurement checks for battery-related maintenance requirements.
Technical Specifications
Applications
- Switching and dimming of one group of luminaires via a 1…10 V control voltage.
- Constant lighting control when used in connection with ABB Light Sensor LF/U 2.1.
- KNX actuator schedules and BOQs requiring ABB LR/M1.6.2 by exact model, Product ID, or EAN.
Installation Notes
- Match the project BOQ exactly against ABB SKU LR/M1.6.2 and Product ID 2CDG110108R0011 before ordering or installation.
- Use the listed ABB Instructions and Manuals reference 2CDG941065P0002 and Wiring Diagram reference 9AKK108469A6672 for technical installation guidance.
- Note that the device is listed with no manual operation; plan commissioning and service access accordingly.
- Verify the project requirement for one output and 1…10 V control voltage before substituting or approving alternatives.
- Check the listed values in official ABB documentation, including voltage range 230, output voltage 230 V AC, maximum switching current 6, maximum control current DC 30, and power loss 0.
Developer Resources
- Manufacturer product URL: https://new.abb.com/products/en/2CDG110108R0011/lr-m1-6-2
- ABB Instructions and Manuals reference: 2CDG941065P0002.
- ABB Wiring Diagram reference: 9AKK108469A6672.
- ABB Declaration of Conformity – CE reference: 2CDK514084D2701.
- EAN: 4016779680677.
- KNXbazzar ABB brand page: https://knxbazzar.com/knxshop/?brand=abb
- KNXbazzar KNX Actuators category: https://knxbazzar.com/product-category/knx-actuators/
FAQ
What is the ABB LR/M1.6.2 used for?
The ABB LR/M1.6.2 enables switching and dimming of one group of luminaires via a 1…10 V control voltage. For dealer and project support, visit KNX dealer program.
How many outputs does the ABB LR/M1.6.2 have?
The product data lists the ABB LR/M1.6.2 with 1 output.
Can the ABB LR/M1.6.2 be used for constant lighting control?
Yes. The product data states that the device can be used for constant lighting control in connection with a Light Sensor LF/U 2.1.
Does the ABB LR/M1.6.2 have manual operation?
No. Manual operation is listed as No in the product data.
Which references should be used to verify the correct item?
Use ABB SKU LR/M1.6.2, Product ID 2CDG110108R0011, EAN 4016779680677, and catalog description LR/M1.6.2 Light Controller Module, 1-fold, 6 AX.
What is the exact product model?
The order/model code for this page is LR/M1.6.2. Match it against project documents before purchase.
Conclusion
ABB LR/M1.6.2 is a 1-fold KNX light controller module for switching and dimming one luminaire group via 1…10 V control voltage, with documented ABB identifiers for professional specification and procurement.
For correct ordering, verify SKU LR/M1.6.2, Product ID 2CDG110108R0011, and the applicable ABB documentation references before approving the item for a KNX project. See official documentation at official manufacturer documentation.
