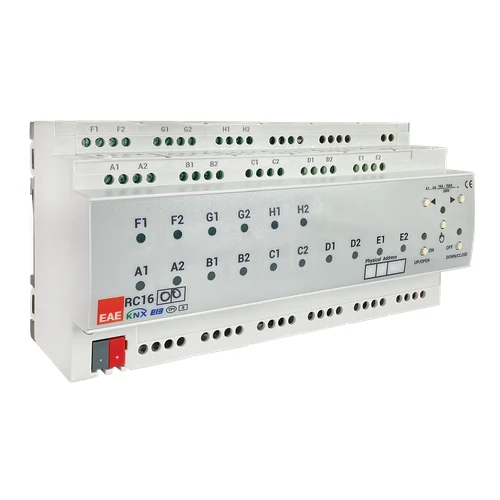

The EAE RCU1600 Room Control Unit (SKU: SMP RCU1600) is a comprehensive all-in-one KNX device designed to consolidate room automation functions into a single controller interface. Featuring 16 outputs rated at 16A, it delivers robust management across room automation requirements, including lighting circuits, motorized blinds, fan speeds, and fan coil units. This device is part of our KNX Actuators products range.
Engineered for efficient system integration, the RCU1600 operates without requiring an external power supply, simplifying electrical panel layouts. Built in accordance with EN 60669 standards for resistive, capacitive, and inductive load switching, the device supports optional dry contact inputs alongside integrated logic functions for flexible deployment.
Key Features
- 16x16A output relay contacts for versatile load control.
- All-in-one functionality for light switching, fan control, and AC/DC blind drives.
- Fan coil control supporting 2-point and 3-point valves.
- Power supply: Does not require an external power supply.
- Compliant with EN 60669 standards for load switching.
- Integrated logic features: Staircase, External logic, Priority, Threshold, Operating hour counting, and Sweep functions.
- Support for optional dry contact inputs.
Benefits
- Centralizes lighting, shading, and climate control into a single 16-channel KNX room control unit.
- Operates without an external power supply, reducing distribution board space and power wiring complexity.
- Handles diverse electrical load types including resistive, capacitive, and inductive loads pursuant to EN 60669.
- Provides HVAC integration for 2-point and 3-point fan coil valve configurations and fan control.
- Supports both AC and DC motorized blinds for wide shading compatibility.
- Includes built-in logic capabilities such as staircase timing, priority control, operating hour counting, and threshold evaluation.
Technical Specifications
Applications
- Hotel guest room and commercial office space automation requiring unified control of lighting, AC/DC blinds, and fan coil units.
- Residential smart building projects requiring multi-channel 16A switching and climate valve control from a single KNX panel component.
Installation Notes
- Mount the module in a standard distribution enclosure and establish connection to the KNX bus cable.
- Wire output channels up to 16A according to EN 60669 load requirements without installing an auxiliary power supply.
- Configure logic operations, valve motor profiles, and optional dry contact inputs using ETS software.
Developer Resources
- Official documentation and product database files are available via the EAE manufacturer portal (https://www.eaetechnology.com/en/products/knx-products/room-control-units/rcu1600-room-control-unit).
FAQ
Does the EAE RCU1600 require an auxiliary power supply?
No, the EAE RCU1600 operates without requiring an external power supply. Explore more EAE automation devices for professional building automation projects.
What load types can the RCU1600 outputs switch?
In compliance with EN 60669, the unit switches resistive, capacitive, and inductive loads across its 16x16A outputs. For certificates and current technical files, refer to the official product documentation.
What types of HVAC valves are supported by the RCU1600?
The device supports fan control and fan coil unit control using 2-point and 3-point valves.
What integrated logic features are included in the unit?
Integrated logic functions include staircase lighting, external logic operations, priority control, threshold management, operating hour counting, and sweep functions.
What is the exact product model?
The order/model code for this page is SMP RCU1600. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
