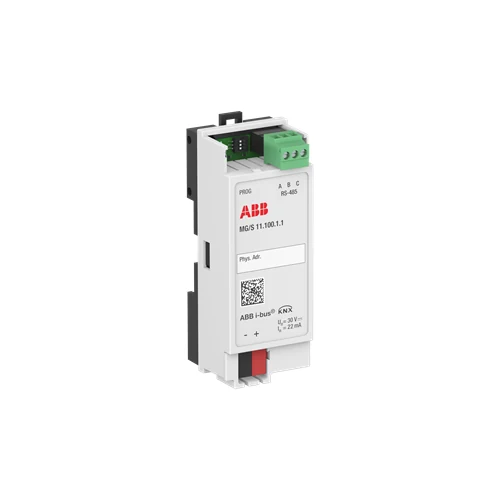

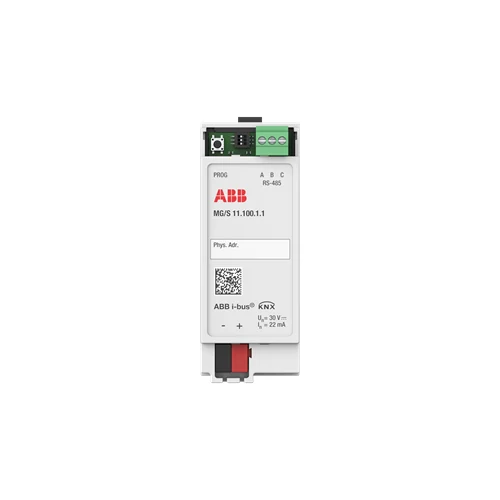

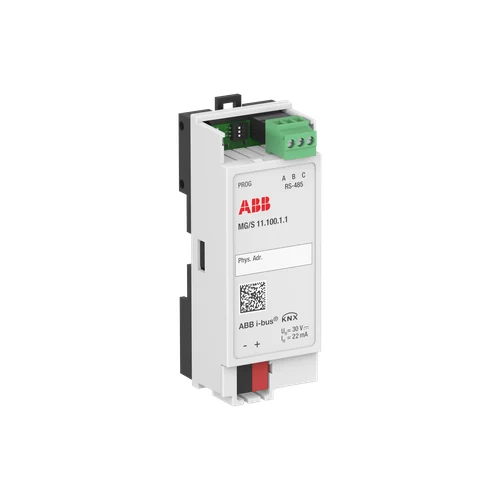

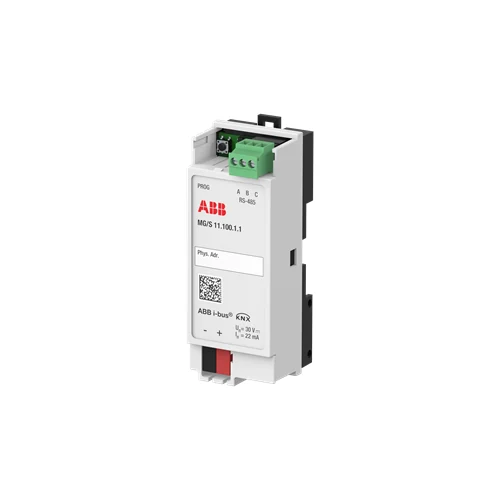

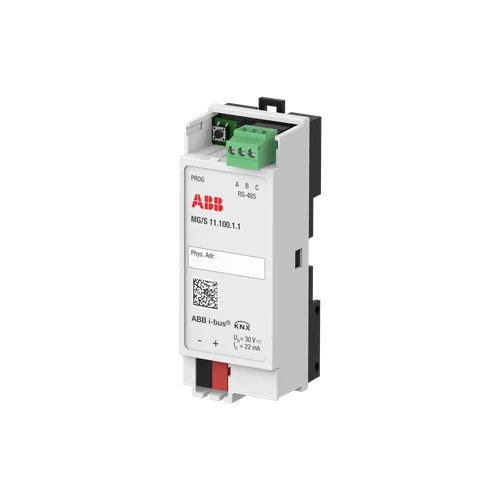

ABB MG/S11.100.1.1 Modbus RTU-KNX TP Gateway, 100 Points, MDRC

Description

Introduction

The ABB MG/S11.100.1.1 is a Modbus RTU-KNX TP Gateway for integrating Modbus RTU server devices with KNX installations at field level. It supports standard KNX data points and up to 100 Modbus data points, making it a defined gateway option for projects where Modbus data must be exchanged with a KNX installation.

Commissioning is carried out with ETS. ABB also provides an optional, free-of-charge ETS-App, DCA, to facilitate configuration by enabling export and import of Modbus-KNX mapping as templates, with Modbus templates available for download from a database. Auxiliary voltage is not required.

Key Features

• Brand: ABB.
• SKU / Extended Product Type: MG/S11.100.1.1.
• Product ID: 2CDG120089R0011.
• Catalog description: MG/S11.100.1.1 Modbus RTU-KNX TP Gateway, 100 Points, MDRC.
• Compatible bus system listed: Modbus.
• Product range: KNX.
• Number of LEDs: 2.
• Software updateable: Yes.

Benefits

• Integrates Modbus RTU server devices with KNX installations at field level.
• Supports standard KNX data points for structured data exchange within a KNX project.
• Handles up to 100 Modbus data points, supporting clearly scoped gateway integration in the bill of quantities.
• Commissioning with ETS supports established KNX engineering workflows.
• Optional free-of-charge ETS-App DCA can simplify configuration by supporting template-based export and import of Modbus-KNX mapping.
• Auxiliary voltage is not required, as stated in the provided product description.

Technical Specifications

Specification	Value
Extended Product Type	MG/S11.100.1.1
Product ID	2CDG120089R0011
Display Name	MG/S11.100.1.1
Instructions and Manuals	2CDG941260P0001
Number of LEDs	2
Manual Operation	No
Number of Batteries	0
E-Number (Norway)	4544003
E-Number (Sweden)	1740284
Declaration of Conformity – CE	9AKK108464A0431
Declaration of Conformity – UKCA	9AKK108464A0465
EAN	4013614571084
Catalog Description	MG/S11.100.1.1 Modbus RTU-KNX TP Gateway, 100 Points, MDRC
Degree of Protection	IP20
Compatible Bus Systems	Modbus
Product Range	KNX
EPLAN Data	9AKK108464A1050
E-Number (Finland)	2815742
E-Number (Switzerland)	405832115
WEEE B2C / B2B	Business To Consumer
ETIM 9	EC001099 – System interface/media gateway for bus system
ETIM 10	EC001099 – System interface/media gateway for bus system
IDEA Granular Category Code (IGCC)	6809 >> System interface/media gateway for bus system
Manufacturer Description	The Modbus KNX Gateway integrates Modbus RTU servers devices with KNX installations at field level. The devices support standard KNX data points (DPT) and up to 100 Modbus data points. The device is put into operation with the ETS. An optional, free-of-charge ETS-App (DCA) is av…
Power Loss	3

Applications

• KNX projects requiring integration of Modbus RTU server devices at field level.
• Installations where up to 100 Modbus data points need to be mapped into a KNX environment.
• Projects using ETS for commissioning and requiring standard KNX data point handling.
• Procurement specifications that call for ABB MG/S11.100.1.1 or Product ID 2CDG120089R0011.

Installation Notes

• Put the device into operation with ETS, as specified in the provided product description.
• Use the optional free-of-charge ETS-App DCA where template-based export and import of Modbus-KNX mapping is required.
• Verify the Modbus point count against the project schedule, as the device supports up to 100 Modbus data points.
• Confirm project suitability against the stated degree of protection, IP20.
• Refer to ABB Instructions and Manuals reference 2CDG941260P0001 and the ABB manufacturer page before ordering or commissioning.

Developer Resources

• ABB manufacturer URL: https://new.abb.com/products/en/2CDG120089R0011/mg-s11-100-1-1.
• Instructions and Manuals reference: 2CDG941260P0001.
• Optional ETS-App DCA is available free of charge to facilitate configuration.
• Modbus-KNX mapping can be exported and imported in the form of templates.
• Modbus templates are available for download from a database.
• EPLAN Data reference: 9AKK108464A1050.
• Declaration of Conformity – CE: 9AKK108464A0431.
• Declaration of Conformity – UKCA: 9AKK108464A0465.

FAQ

What is the ABB MG/S11.100.1.1 used for?

It is used to integrate Modbus RTU server devices with KNX installations at field level.

How many Modbus data points does the ABB MG/S11.100.1.1 support?

The device supports up to 100 Modbus data points.

How is the ABB MG/S11.100.1.1 commissioned?

The device is put into operation with ETS.

Is an ETS-App available for configuration?

Yes. An optional, free-of-charge ETS-App, DCA, is available to facilitate configuration, including export and import of Modbus-KNX mapping templates.

Does the ABB MG/S11.100.1.1 require auxiliary voltage?

Auxiliary voltage is not required, according to the provided product description.

What is the exact product model?

The order/model code for this page is MG/S11.100.1.1. Match it against project documents before purchase.

Conclusion

The ABB MG/S11.100.1.1 is a defined Modbus RTU-KNX TP Gateway for field-level integration of Modbus RTU server devices with KNX installations, supporting standard KNX data points and up to 100 Modbus data points.

For accurate procurement, specify the exact SKU MG/S11.100.1.1, verify Product ID 2CDG120089R0011, and consult ABB documentation before commissioning.
