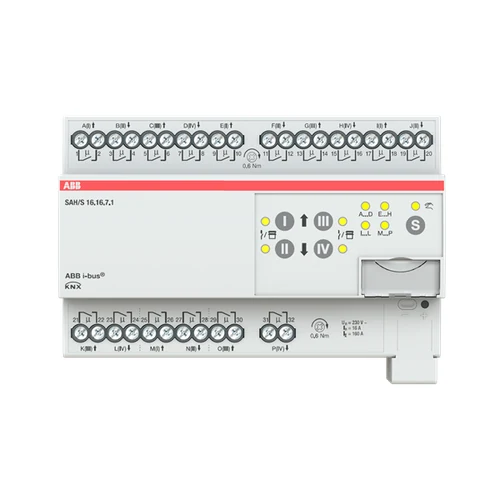

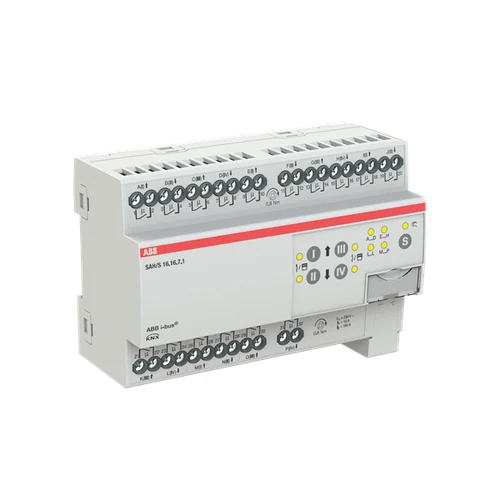

ABB SAH/S16.16.7.1

Description

Introduction

ABB SAH/S16.16.7.1 is presented here for accurate model identification and B2B project procurement. Confirming the exact order code against BOQ and consultant documents reduces costly ordering mistakes. This device is part of our KNX system devices range.

Verified manufacturer information: Detailed information for: SAH/S16.16.7.1 The compact 16 A combi switch actuator has 16 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The devic

Key Features

• Brand: ABB
• Model / SKU: SAH/S16.16.7.1
• Extended Product Type:: SAH/S16.16.7.1
• Product ID:: 2CDG110251R0011
• Instructions and Manuals:: 2CDG941212P0002
• Contact Position Indication:: ON / OFF

Benefits

• Helps purchasing teams verify the exact model before ordering
• Supports consultants, installers, integrators, and corporate buyers
• Encourages validation against official manufacturer documentation

Technical Specifications

Specification	Value
Extended Product Type:	SAH/S16.16.7.1
Product ID:	2CDG110251R0011
Instructions and Manuals:	2CDG941212P0002
Contact Position Indication:	ON / OFF
Number of Outputs:	16
Number of LEDs:	10
Manual Operation:	Yes
Suitable for C-Load:	No
Number of Batteries:	0
Declaration of Conformity – CE:	2CDK505209D2701
EAN:	4016779066853
Catalog Description:	SAH/S16.16.7.1 Switch/Shutter Actuator, 16-fold, 16 A, MDRC
Compatible Bus Systems:	KNX (TP)
Product Range:	KNX
SCIP:	5d96afc8-ddee-4959-ae5b-e82cf0b90bdf Germany (DE)
Degree of Protection:	IP20
ETIM 9:	EC001097 – Switch actuator for bus system
WEEE B2C / B2B:	Business To Consumer
Environmental Ambient Air Temperature	Operation -5 … +45 °C Degree of Protection: IP20
Ambient Air Temperature	Operation -5 … +45 °C Degree of Protection: IP20
Long Description:	The compact 16 A combi switch actuator has 16 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
Output Voltage (U out ):	230 V AC
Auxiliary Voltage AC/DC:	KNX
Maximum Switching Current:	16
Maximum Switching Power:	1200

Applications

• Project procurement workflows that require strict SKU matching
• Technical and commercial enquiry packages for contractors and system integrators

Installation Notes

• Review the manufacturer documentation for this exact order code before installation planning
• Do not substitute similar models without project consultant approval

FAQ

What is the exact product model?

The order/model code for this page is SAH/S16.16.7.1. Match it against project documents before purchase. Explore more ABB building automation products for professional building automation projects.

Who is the manufacturer?

This product is manufactured by ABB. For certificates and current technical files, refer to the official ABB documentation.

Where can I find the official technical documentation?

Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.

Is this page suitable for project procurement?

Yes. It is intended for accurate model identification and B2B procurement coordination. Share quantity and project references when requesting a quote.

Is this product KNX compatible?

Verified source data for this model references KNX. Confirm protocol and commissioning details only from official manufacturer documentation.

Conclusion

When specifying ABB SAH/S16.16.7.1, confirm the exact order code against project documents and official manufacturer documentation before procurement. Installers and system integrators can review our become a KNX dealer options.
