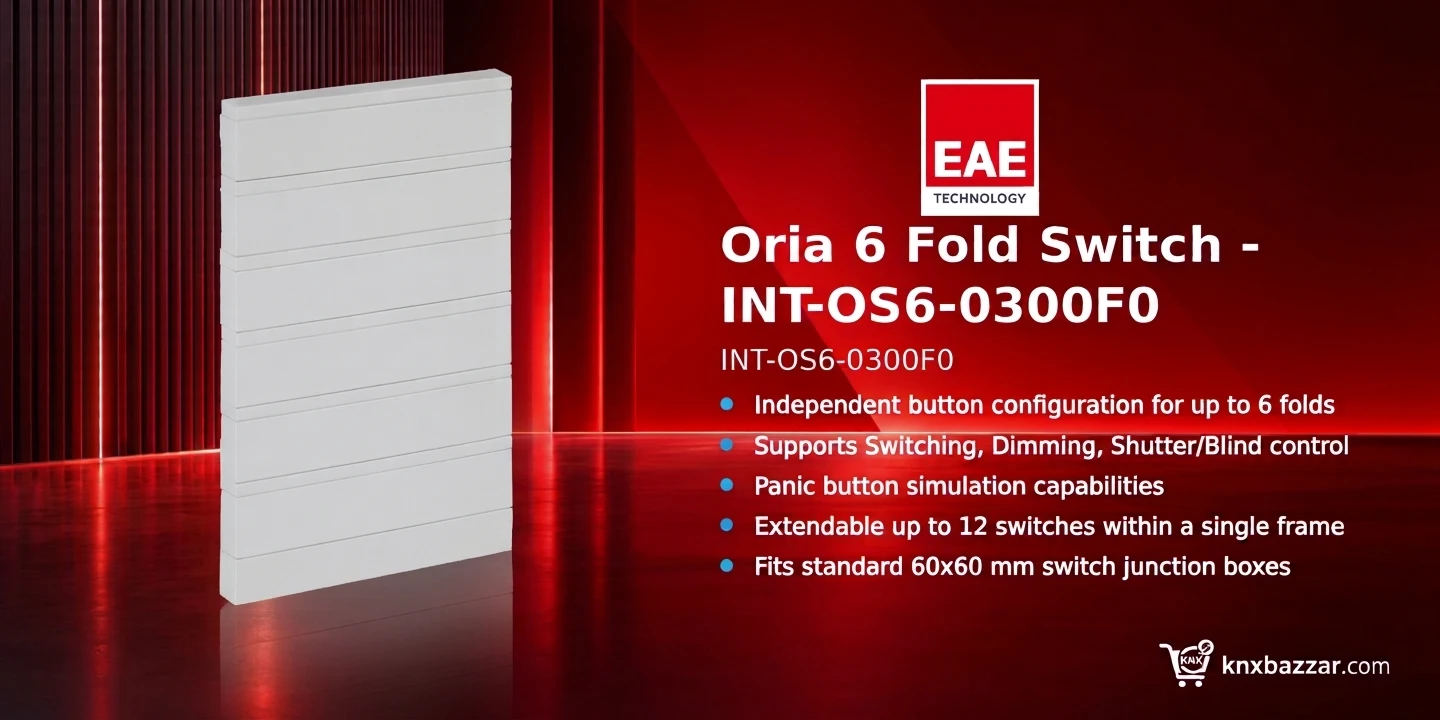

EAE Oria 6 Fold Switch – INT-OS6-0300F0

Description

Introduction

The EAE Oria 6 Fold Switch (model INT-OS6-0300F0) is a versatile KNX push button interface engineered for modern room automation systems. Capable of supporting complex commercial and residential automation requirements, this switch allows each fold to be programmed independently to manage switching, dimming, shutter/blind drives, scene triggers, and audio controls. This device is part of our KNX automation components range.

Designed for convenient integration into standard 60×60 mm switch junction boxes, the INT-OS6-0300F0 requires no external power supply. It features durable surface protection and is customizable with optional status LEDs, temperature/humidity sensors, and labeling, available in Antique, Pearl White, Mustang gray, and Anthracite finishes.

Key Features

• Independent button configuration for up to 6 folds.
• Supports Switching, Dimming, Shutter/Blind control, Value and priority assignment, and Scene control.
• Panic button simulation capabilities.
• Extendable up to 12 switches within a single frame.
• Fits standard 60×60 mm switch junction boxes.
• Operates without an external power supply.
• Optional feedback and status indication LEDs.
• Optional internal temperature and humidity sensing.

Benefits

• Independent Control Logic: Every fold can be independently programmed for specific KNX commands including dimming, switching, shading, audio, and scene calls.
• Simple Installation: Compatible with standard 60×60 mm switch junction boxes without requiring an auxiliary external power supply.
• Modular Scalability: Designed to be extendable up to 12 switches in a single frame for larger multi-function wall stations.
• Aesthetic Variety: Offered in four distinct surface finishes—Antique, Pearl White, Mustang gray, and Anthracite—with optional custom icon and text labeling.
• Environmental Integration: Supports optional integrated temperature and humidity sensors alongside status indication LEDs.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	INT-OS6-0300F0
Series	Oria
Number of Folds	6
Mounting Type	60×60 mm standard switch junction
Power Supply	No external power supply required
Color Options	Antique, Pearl White, Mustang gray, Anthracite

Applications

Smart Residential Spaces: Serves as a centralized multi-button keypad for managing multi-zone lighting, motorized blinds, background audio speakers, and customized ambiance scenes. Explore more products from EAE for professional building automation projects.

Commercial & Hospitality Interiors: Provides convenient localized wall control in meeting rooms, hotel suites, and corporate offices requiring clean 60×60 mm electrical box mounting.

Installation Notes

• Mounting Setup: Installs directly into standard 60×60 mm switch junction boxes. Ensure standard installation practices are followed for back-box depth.
• Power & Connection: Connects directly to the KNX bus line without requiring additional external power supplies.

Developer Resources

• Official EAE Product Documentation: https://www.eaetechnology.com/en/products/knx-products/oria-push-switches/oria-6-fold-switch
• ETS application database files available from manufacturer for parameter assignment and object mapping.

FAQ

Does the EAE Oria 6 Fold Switch require an auxiliary power supply?

No, model INT-OS6-0300F0 does not require an external power supply to operate. For certificates and current technical files, refer to the official product documentation.

What junction box size is required for installation?

It is designed to fit standard 60×60 mm switch junction boxes.

Can this switch be combined with additional buttons in a single frame?

Yes, Oria switches can be extended up to 12 switches in a single frame.

What functions can be programmed onto the buttons?

Each button can be independently configured for switching, dimming, shutter/blind control, value/priority assignment, audio speaker management, scene execution, and panic button simulation.

What is the exact product model?

The order/model code for this page is INT-OS6-0300F0. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Conclusion

The EAE Oria 6 Fold Switch (INT-OS6-0300F0) provides a flexible, modular wall control solution for KNX automation projects. With independent fold programming, robust 60×60 mm junction box mounting, bus-powered efficiency, and optional climate sensing, it meets high technical and aesthetic standards across residential and commercial applications. Installers and system integrators can review our become a KNX dealer options.
