Description
Introduction

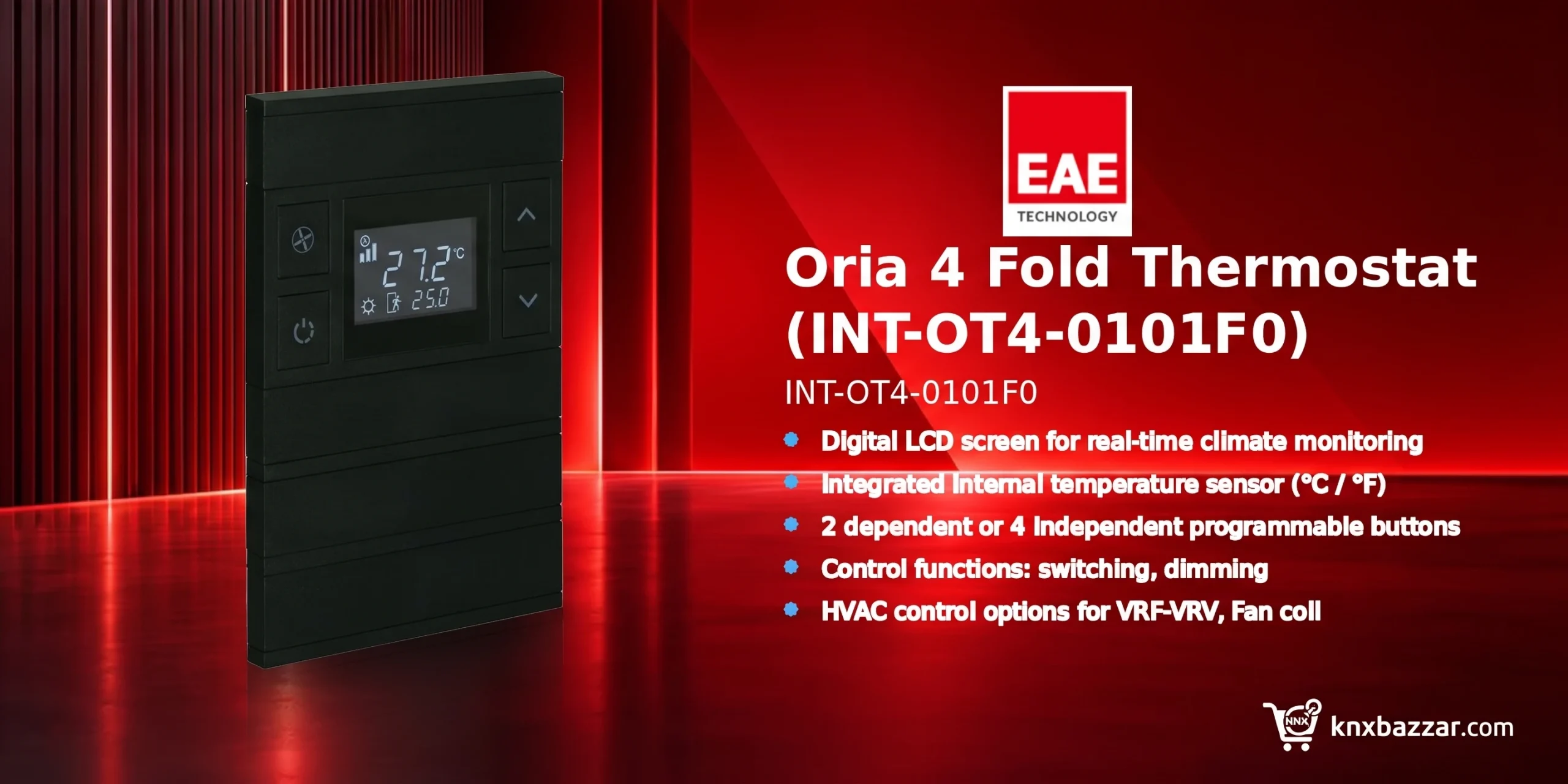

The EAE Oria 4 Fold Thermostat (SKU: INT-OT4-0101F0) is an all-in-one climate control unit and multi-function switch designed for KNX building automation systems. Designed for installation into standard 60×60 mm switch junction boxes, it incorporates a digital LCD screen for real-time climate monitoring and an internal temperature sensor with a measurement accuracy of ±0.3°C. This device is part of our professional KNX Thermostats range.
Equipped with 2 dependent or 4 independent programmable push buttons, the device supports comprehensive automation control functions including switching, dimming, shutter/blind control, value and priority assignment, and scene recall. It delivers HVAC control across VRF-VRV, Fan coil, and Split units using algorithms such as PI relative, PI on-off (PWM), and On/Off control.
Key Features
- Digital LCD screen for real-time climate monitoring.
- Integrated internal temperature sensor (°C / °F) with ±0.3°C measurement accuracy.
- 2 dependent or 4 independent programmable buttons.
- Control functions: switching, dimming, shutter/blind control, value/priority assignment, and scene recall.
- HVAC control options for VRF-VRV, Fan coil, and Split units.
- Control algorithms: PI relative, PI on-off (PWM), and On/Off.
- Adjustable fan speeds (1, 2, 3, Automatic).
- Selectable operation modes: Comfort, Night, Outdoor, Indoor.
Benefits
- High-Precision Measurement: Built-in temperature sensor provides precise temperature readings with an accuracy of ±0.3°C in °C or °F.
- Comprehensive HVAC Control: Integrates PI relative, PI on-off (PWM), and On/Off control algorithms for VRF-VRV, Fan coil, and Split systems.
- Versatile Multi-Function Switch: Features 2 dependent or 4 independent buttons supporting switching, dimming, shutter/blind operation, scene control, and value/priority assignment.
- Automated Climate Transitions: Supports fully automatic heating and cooling transitions alongside selectable Comfort, Night, Outdoor, and Indoor operating modes.
- Visual Operating Feedback: Integrated digital LCD screen and status notification feedback LEDs offer clear real-time operational feedback.
- Flexible Design Options: Available in Pearl White, Mustang Gray, and Anthracite finishes to fit diverse interior requirements.
Technical Specifications
Applications
- Residential KNX Automation: Provides localized room temperature control and multi-function switching for lighting, blinds, and scenes.
- Commercial Office Spaces: Delivers zoned climate management across VRF-VRV or Fan coil systems with configurable operating modes.
- Hospitality & Hotel Rooms: Integrates climate control and guest-facing push-button control within standard 60×60 mm junction box installations.
Installation Notes
- Designed for wall mounting in standard 60×60 mm switch junction boxes.
- Ensure proper ETS parameter configuration for 2 dependent or 4 independent button assignments.
- Mount in a location that allows accurate ambient temperature reading away from direct heat sources.
Developer Resources
- Manufacturer Product Documentation: https://www.eaetechnology.com/en/products/knx-products/oria-push-thermostats/oria-4-fold-thermostat
FAQ
Which HVAC unit types are supported by the EAE Oria 4 Fold Thermostat?
The Oria 4 Fold Thermostat supports control for VRF-VRV, Fan coil, and Split units. Explore more EAE automation devices for professional building automation projects.
What control algorithms does model INT-OT4-0101F0 use?
It utilizes PI relative, PI on-off (PWM), and On/Off control algorithms. For certificates and current technical files, refer to the official EAE documentation.
What box dimensions are required for mounting?
The thermostat is designed for installation into standard 60×60 mm switch junction boxes.
What functions can be assigned to the push buttons?
The buttons can be programmed for switching, dimming, shutter/blind control, value and priority assignment, and scene control.
What is the exact product model?
The order/model code for this page is INT-OT4-0101F0. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
Conclusion
The EAE Oria 4 Fold Thermostat (INT-OT4-0101F0) combines high-accuracy climate sensing with versatile switch functionality for KNX automation environments. Installers and system integrators can review our professional project support options.
Featuring a digital LCD screen, configurable HVAC algorithms, and standard 60×60 mm mounting compatibility, it offers a functional solution for modern climate control.
