EAE SD110 1-10V KNX Dim Actuator (SMP SD110)

Description

Introduction

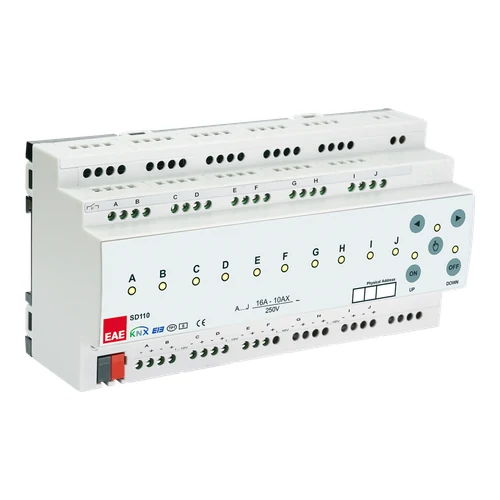

The EAE SD110 (SKU: SMP SD110) is a high-density 10-channel 1-10V dim actuator engineered specifically for KNX building automation systems. Designed to manage commercial and residential dimmable lighting circuits, it incorporates 10 independent channels, each rated for 16A, delivering scalable and precise control across diverse lighting zones. This device is part of our KNX Actuators products range.

Operating without the need for an additional auxiliary power supply, the unit streamlines panel design and reduces installation complexity. Each channel integrates an individual relay to guarantee complete electrical switch-off, alongside front-panel membrane switches that facilitate direct manual channel operation during testing, commissioning, or override scenarios.

Key Features

• 10 independent 1-10V dimming control channels with 16A channel ratings.
• Parameterization supported via ETS4 or ETS5 configuration software.
• Integrated membrane switches for independent manual channel operation.
• Built-in relays on each channel for complete physical switch-off functionality.
• No additional auxiliary power supply required for operation.
• Advanced logic functions: Staircase lighting, scene management, operating hour calculation, and forced operation.
• Programmable behavior settings upon bus voltage failure, voltage recovery, or ETS download.

Benefits

• Operates directly via the KNX bus line without requiring an additional auxiliary power supply.
• Provides complete physical electrical disconnect on every channel thanks to integrated 16A switching relays.
• Enables immediate direct control and commissioning through front-facing manual membrane switches.
• Supports comprehensive lighting control logic including staircase functions, scene management, and operating hour calculations.
• Enhances system reliability with configurable channel responses following voltage loss, voltage return, or ETS download.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	SD110
Number of Channels	10
Channel Rating	16A
Control Interface	1-10V

Applications

• Commercial office lighting automation requiring multi-zone 1-10V dimming and manual override options.
• Hospitality and residential KNX projects utilizing scene control, staircase lighting timers, and operating hour tracking.
• Building automation control panels where space and energy efficiency benefit from eliminating auxiliary power supplies.

Installation Notes

• Ensure correct wiring of the 1-10V control interface connections alongside the 16A relay switching terminals.
• Parameterize individual channel features, logic functions, and failure behaviors using ETS4 or ETS5.
• Verify manual channel functionality using the dedicated membrane switches prior to final commissioning.

Developer Resources

• ETS4 and ETS5 database entries available for individual channel configuration and logic parameterization.

FAQ

Does the EAE SD110 require an external auxiliary power supply?

No, the EAE SD110 operates without requiring an additional auxiliary power supply. Explore more EAE KNX solutions for professional building automation projects.

Which software versions are supported for parameterization?

The actuator can be independently parameterized using ETS4 or ETS5. For certificates and current technical files, refer to the official EAE documentation.

What is the switching capacity rating for each channel?

Each of the 10 independent channels features a channel rating of 16A.

Can the dimming channels be operated manually on the device?

Yes, each channel includes individual membrane switches on the device for manual operation.

What is the exact product model?

The order/model code for this page is SMP SD110. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Conclusion

The EAE SD110 1-10V KNX Dim Actuator delivers high-channel-density dimming and switching in a single robust unit. With 10 independent 16A channels, integrated manual membrane switches, and flexible ETS parameterization, it offers a reliable solution for professional building automation projects. Installers and system integrators can review our dealer and project support options.
