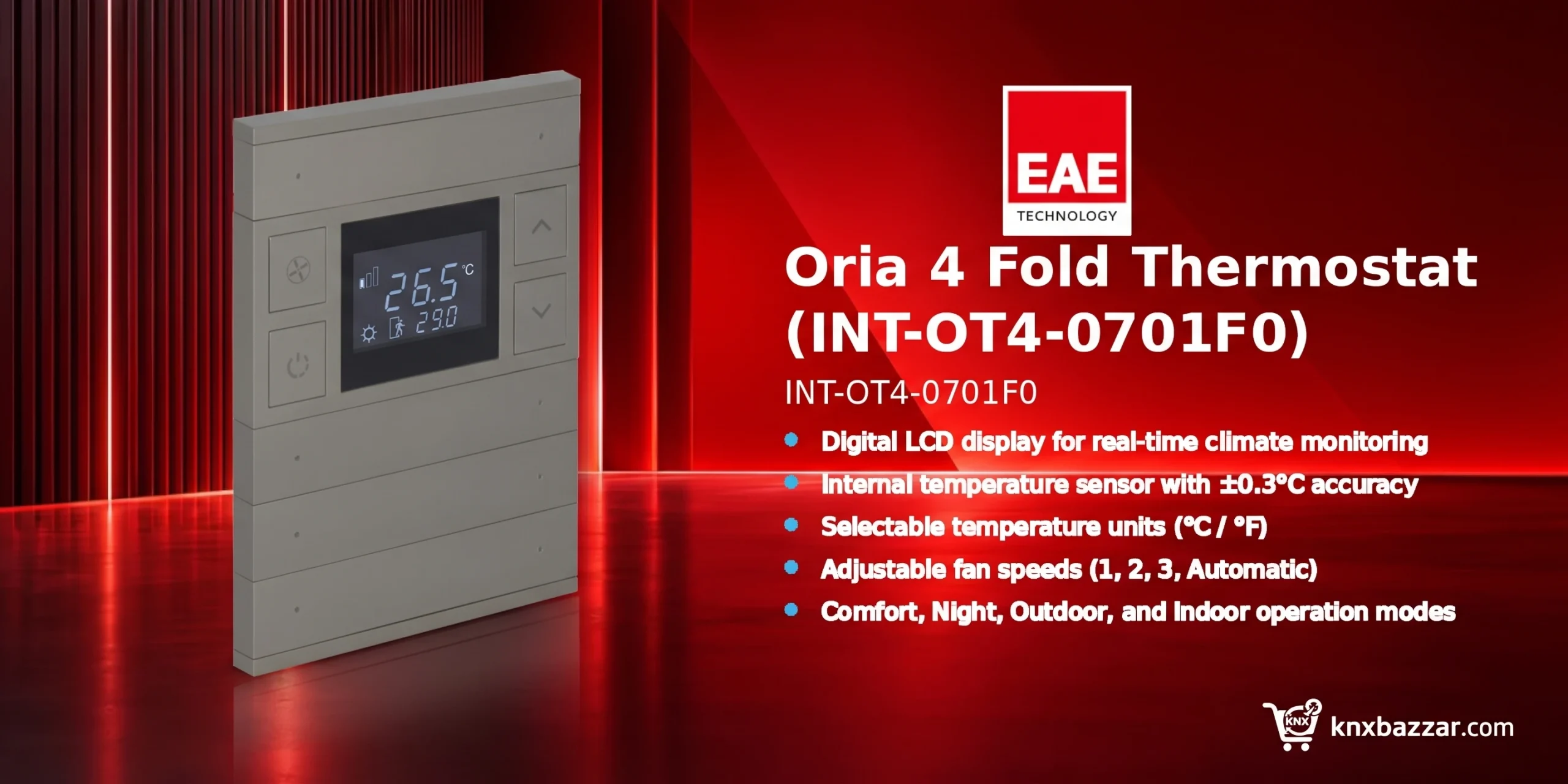

EAE Oria 4 Fold Thermostat (INT-OT4-0701F0)

Description

Introduction

The EAE Oria 4 Fold Thermostat (SKU: INT-OT4-0701F0) is an all-in-one room controller designed for comprehensive climate management and integrated push-button automation. Featuring a digital LCD display for real-time monitoring and an internal temperature sensor with ±0.3°C accuracy (configurable in °C or °F), this device simplifies room control in KNX installations. Available in Pearl White, Mustang Gray, and Anthracite, it combines aesthetic versatility with high-performance functionality. This device is part of our KNX Thermostats products range.

Designed to handle diverse HVAC configurations, the thermostat supports VRF-VRV systems, fan coils, and split units utilizing control algorithms such as PI relative, PI on-off (PWM), and On/Off regulation. In addition to climate management, it integrates 2 dependent or 4 independent push buttons for switching, dimming, shutter/blind drives, scene recall, value assignment, and panic alerts with dedicated status feedback LEDs.

Key Features

• Digital LCD display for real-time climate monitoring
• Internal temperature sensor with ±0.3°C accuracy
• Selectable temperature units (°C / °F)
• Adjustable fan speeds (1, 2, 3, Automatic)
• Comfort, Night, Outdoor, and Indoor operation modes
• PI relative, PI on-off (PWM), On/Off, fan coil, and split unit control algorithms
• 2 dependent or 4 independent programmable buttons with status feedback LEDs

Benefits

• Unified Climate & Automation Control: Combines room thermostat functionality and 4-fold push-button switching in a single device.
• High Sensor Precision: Built-in internal temperature sensor offers accuracy within ±0.3°C with configurable °C/°F display units.
• Flexible HVAC Algorithms: Implements PI relative, PI on-off (PWM), and On/Off control algorithms for VRF-VRV, fan coil, and split units.
• Multiple Operating Modes: Features Comfort, Night, Outdoor, and Indoor modes along with 3-speed or automatic fan adjustments.
• Multi-Function Push Buttons: Supports lighting switching, dimming, shutter/blind control, scene recall, and panic functions with LED feedback.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	INT-OT4-0701F0
Series	Oria
Measurement Accuracy	±0.3°C
Temperature Units	°C / °F
Fan Speed Settings	1, 2, 3, Automatic
Operation Modes	Comfort, Night, Outdoor, Indoor
HVAC Control Methods	PI relative, PI on-off (PWM), On/Off, Fan coil, Split unit
Available Options	Pearl White, Mustang Gray, Anthracite
Mounting	60×60 mm standard switch junction

Applications

• HVAC Climate Control: Management of VRF-VRV, fan coil, and split air conditioning systems in residential and commercial buildings.
• Integrated Wall Panel Automation: Combined control of temperature, lighting, dimming, and motorized blinds/shutters from a single junction box.
• Multi-Zone Room Management: Flexible operation across Comfort, Night, Outdoor, and Indoor modes in offices, hotels, and apartments.

Installation Notes

• Designed for standard installation into 60×60 mm switch junction boxes.
• Verify the selected color variant (Pearl White, Mustang Gray, or Anthracite) against project BOQ prior to installation.
• Configure appropriate control algorithms (PI, PWM, On/Off) according to the specific HVAC equipment requirements.

FAQ

What is the sensor accuracy of the EAE Oria 4 Fold Thermostat?

The internal temperature sensor delivers a measurement accuracy of ±0.3°C, with configurable units in °C or °F. Explore more EAE automation devices for professional building automation projects.

Which HVAC control methods are supported by SKU INT-OT4-0701F0?

It supports PI relative, PI on-off (PWM), On/Off, Fan coil, and Split unit control algorithms for VRF-VRV and other HVAC systems. For certificates and current technical files, refer to the official EAE documentation.

What wall box size is required for mounting?

The thermostat is engineered for installation into standard 60×60 mm switch junction boxes.

What automation functions can the integrated push buttons perform?

The 2 dependent or 4 independent push buttons can be assigned to switching, dimming, shutter/blind control, scene recall, value assignment, and panic alerts.

What is the exact product model?

The order/model code for this page is INT-OT4-0701F0. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Conclusion

The EAE Oria 4 Fold Thermostat (INT-OT4-0701F0) delivers an efficient, integrated solution for room climate control and push-button automation. Installers and system integrators can review our dealer and project support options.

Combining high sensor accuracy, multi-algorithm HVAC regulation, and fitment in standard 60×60 mm wall boxes, it provides precise and versatile automation for modern smart building projects.
