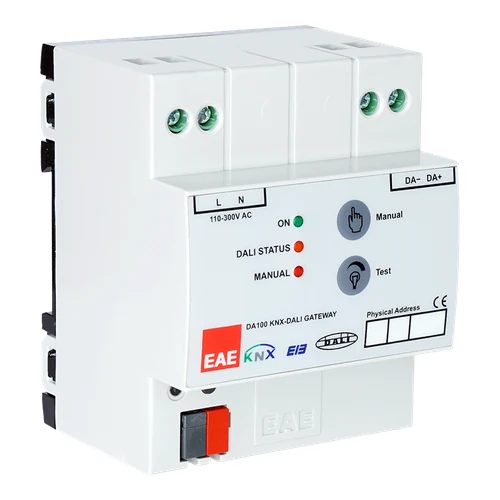

EAE DA100 KNX-DALI Gateway (SMP DA100)

Description

Introduction

The EAE DA100 KNX-DALI Gateway serves as a dedicated interface between the KNX bus system and the DALI bus network. Fully compliant with the IEC 62386 standard, this gateway features an integrated DALI power supply within the unit, eliminating the need for an external DALI power source while driving communications across the lighting network. This device is part of our professional KNX Actuators range.

Designed for advanced lighting control, the DA100 connects up to 64 DALI devices—including electronic ballasts, LED drivers, and ECK—across 16 lighting groups and 64 scenes. Using the EAE DALI Commissioning Tool, system integrators can perform addressing and grouping while configuring functional modes such as constant light control, corridor functions, and sequence functions.

Key Features

• Full compliance with the IEC 62386 standard for DALI protocols.
• Interfacing support for electronic ballasts, LED drivers, and ECK components.
• Addressing and grouping configured via the EAE DALI Commissioning Tool.
• Individually configurable group control for constant light, corridor, or sequence routines.
• Integrated functional and battery life test execution for emergency fixtures via KNX.
• Fault status detection and notification across KNX group objects.

Benefits

• Integrates up to 64 DALI devices seamlessly into a KNX building control system.
• Includes an integrated DALI power supply directly within the gateway device.
• Provides structured control over 16 DALI groups and 64 customizable lighting scenes.
• Supports functional and battery life testing for DALI-compliant emergency lighting over KNX.
• Monitors DALI device fault status in real time through dedicated KNX group objects.
• Offers flexible group functions including constant light, corridor, and sequence management.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	DA100
SKU	SMP DA100
Standard	IEC 62386
Supported DALI Devices	Up to 64
DALI Groups	16
Lighting Scenes	64

Applications

• Commercial and residential building automation requiring KNX-to-DALI lighting integration.
• Facility lighting management demanding automated emergency lighting functional and battery tests.
• Energy-efficient installations requiring corridor routines, sequence functions, or constant light control.

Installation Notes

• Perform addressing and grouping operations using the official EAE DALI Commissioning Tool.
• Ensure proper wiring setup for up to 64 DALI devices utilizing the gateway’s integrated DALI power supply.

Developer Resources

• DALI configuration and addressing handled via the EAE DALI Commissioning Tool.
• KNX group object assignments for fault reporting and emergency light status testing.

FAQ

How many DALI devices can be connected to the EAE DA100?

The EAE DA100 supports up to 64 DALI devices on the DALI bus, including electronic ballasts, LED drivers, and ECK. Explore more EAE KNX solutions for professional building automation projects.

How are addressing and grouping configured on the DA100?

Addressing and grouping operations are carried out using the dedicated EAE DALI Commissioning Tool. For certificates and current technical files, refer to the official EAE product page.

Does the EAE DA100 support emergency lighting monitoring?

Yes, the gateway executes functional and battery life tests for DALI-compliant emergency lighting fixtures via KNX and monitors device fault statuses.

What is the exact product model?

The order/model code for this page is SMP DA100. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Where can I find the official technical documentation?

Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.

Conclusion

The EAE DA100 KNX-DALI Gateway (SMP DA100) provides a robust interface between KNX networks and IEC 62386 DALI systems. Featuring an integrated DALI power supply, support for 64 devices, 16 groups, 64 scenes, and built-in emergency lighting testing, it delivers efficient control for complex lighting requirements. Installers and system integrators can review our become a KNX dealer options.
