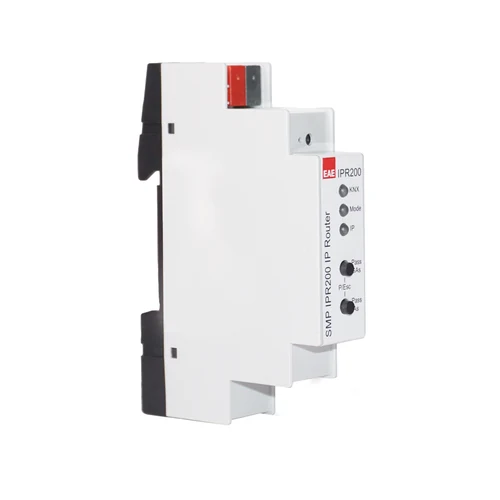

The EAE IPR200 IP Router serves as a line or backbone coupler designed to enable seamless communication between KNXnet/IP networks and TP KNX bus lines. Engineered for modern building automation architectures, it operates as both a tunneling and routing device to facilitate reliable transmission of telegrams between local network infrastructures and bus systems. This device is part of our KNX system components range.
By offering electrical insulation between connected lines, the EAE IPR200 protects connected bus segments. It allows up to 4 simultaneous KNXnet/IP connections and supports flexible IP address configuration via manual assignment or a DHCP server, backed by status LEDs and diagnostic controls for streamlined operation.
Key Features
- KNX IP Router device type operating across KNXnet/IP and TP KNX lines.
- Integrated routing and tunneling protocol capabilities.
- Electrical insulation across linked physical and network lines.
- Capacity for up to 4 simultaneous KNXnet/IP connections.
- Manual or DHCP server options for IP address assignment.
- Configurable telegram filter table to block or pass specific messages.
- Dedicated push buttons on the device to disable filter tables during diagnostics.
- 6 visual status LEDs providing real-time functional state monitoring.
Benefits
- Functions effectively as a line or backbone coupler connecting KNXnet/IP and TP KNX lines.
- Provides electrical insulation between linked lines for system safety.
- Supports up to 4 simultaneous KNXnet/IP connections for versatile integration.
- Offers flexible network setup with manual or DHCP IP address assignment.
- Includes configurable filter tables to manage and prioritize bus telegram traffic.
- Enables rapid diagnostic checks via push buttons that temporarily deactivate telegram filtering.
Technical Specifications
Applications
- Coupling local IP networks with TP KNX bus lines in backbone or line coupler configurations.
- Providing multi-channel KNXnet/IP tunneling for complex building control system integration.
- Managing telegram traffic and protecting bus segments through electrical isolation in commercial KNX projects.
Installation Notes
- Configure network settings prior to deployment, choosing either static IP assignment or dynamic configuration via a DHCP server.
- Observe the 6 functional status LEDs during startup to verify connection status and telegram movement.
- Utilize the on-device buttons during diagnostic phases to temporarily bypass the active filter table.
FAQ
What primary functions does the EAE IPR200 perform?
The EAE IPR200 functions as a line coupler or backbone coupler to connect KNXnet/IP with TP KNX bus lines, working as a tunneling and routing device. Explore more EAE KNX solutions for professional building automation projects.
How many KNXnet/IP connections can be established simultaneously?
The device supports up to 4 simultaneous KNXnet/IP connections. For certificates and current technical files, refer to the official EAE product page.
How is an IP address assigned to the device?
IP addresses can be assigned manually or automatically using a DHCP server.
How do push buttons on the device help during maintenance?
The push buttons allow quick deactivation of the filter table, enabling full telegram pass-through for rapid fault diagnosis.
What is the exact product model?
The order/model code for this page is SMP IPR200. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
