Description
Introduction

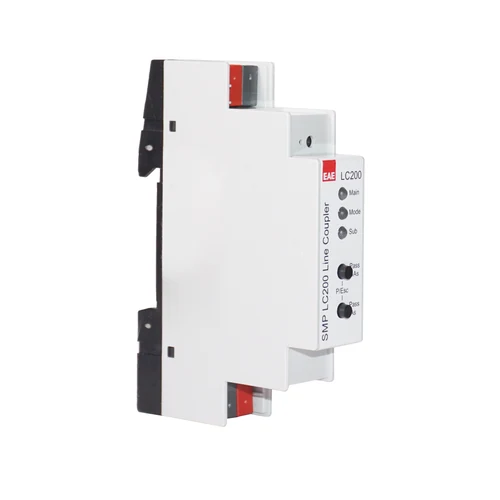

The EAE LC200 (SKU: MSP LC200) is a high-performance KNX system device designed to filter and manage bus traffic based on its position within the bus system hierarchy or through integrated filter tables for group-oriented communication. By preventing unnecessary bus traffic across segments, it ensures optimized communication flow throughout smart building automation networks. This device is part of our professional KNX Gateway range.
Built with galvanically isolated KNX bus lines, the LC200 guarantees electrical isolation between system segments. Featuring six bicolor diagnostic LEDs for live monitoring of line traffic, errors, and filter status, along with single-button activation for manual and special commissioning functions, this device operates reliably as either a KNX line coupler or a line repeater.
Key Features
- Traffic filtering according to KNX bus hierarchy or integrated filter tables.
- Galvanically isolated KNX bus lines for safe line separation.
- Six bicolor status LEDs displaying bus traffic, errors, and filter status for each line.
- Support for long telegram communication.
- Configurable ‘Manual Function’ activated via a single push button.
- Special function mode for transmitting all group telegrams with automatic reset up to 8 hours.
- Dual function configuration as a KNX Line Coupler or Line Repeater.
Benefits
- Efficient Bus Management: Filters KNX traffic using built-in or system-hierarchy filter tables to minimize unnecessary load on adjacent bus lines.
- Electrical Protection: Galvanically isolated KNX lines prevent ground loops and fault propagation between connected network segments.
- Flexible Dual-Mode Operation: Can be configured either as a line coupler between lines/areas or as a line repeater to extend line lengths beyond standard limits.
- Comprehensive Visual Feedback: Six bicolor LEDs continuously report traffic flow, communication errors, and filter state on each line.
- Simplified Commissioning: Enables one-button temporary bypass of filter tables (up to 8 hours with auto-reset) for seamless group telegram testing during setup.
Technical Specifications
Applications
- Coupling individual KNX lines or areas in structured commercial and residential KNX networks.
- Extending KNX bus line segments beyond standard hardware limitations by configuring as a line repeater.
- Segmenting smart building communications to improve data throughput and network safety.
Installation Notes
- Mount the device in a standard distribution panel and connect the main KNX line and sub-line to their respective terminals.
- Use ETS software to program the operating mode (Line Coupler vs. Line Repeater) and set the appropriate filter table parameters.
- Utilize the front push button to activate manual override or temporary filter pass-through during system testing and commissioning.
Developer Resources
- Official ETS application database and device documentation available via EAE Technology.
- Standard KNX system topology guidelines for gateway and coupler integration.
FAQ
Can the EAE LC200 be used to extend a KNX line beyond standard limits?
Yes, the LC200 can be configured as a KNX line repeater to extend bus lines beyond standard device and physical length limits. Explore more EAE KNX products for professional building automation projects.
How do the diagnostic LEDs work on the LC200?
The device includes six bicolor LEDs that provide immediate visual diagnostics regarding bus traffic, line errors, and active filter status for both connected lines. For certificates and current technical files, refer to the official product documentation.
What is the function of the single button on the front of the LC200?
The single button triggers a configurable ‘Manual Function’ or special commissioning routine, such as passing all group telegrams with an automatic reset timer up to 8 hours.
Does the EAE LC200 support long telegrams?
Yes, the LC200 fully supports long telegrams for efficient KNX communication.
What is the exact product model?
The order/model code for this page is MSP LC200. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
Conclusion
The EAE LC200 KNX Line Coupler / Repeater (MSP LC200) delivers dependable line separation, intelligent traffic filtering, and system expansion features for professional KNX infrastructure. Its user-friendly diagnostic LEDs and temporary override button make it a practical and essential component for system integrators and electrical engineers. Installers and system integrators can review our become a KNX dealer options.
