Inspinia INS-SBM24 1-Button VoIP/SIP & Wi-Fi Intercom

Description

Introduction

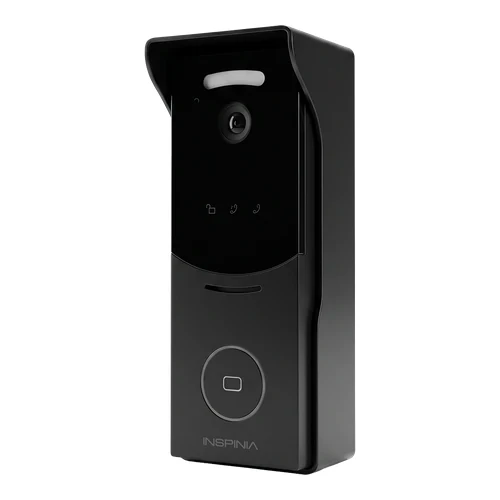

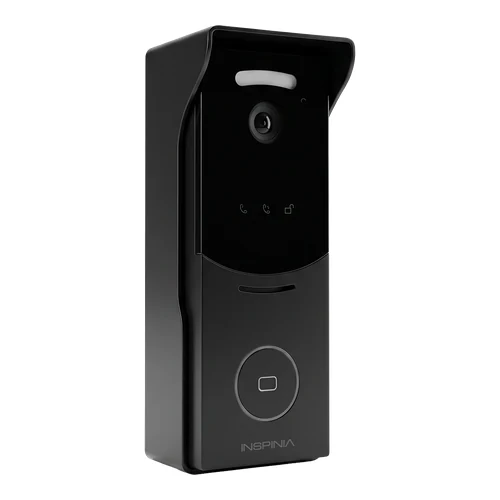

The Inspinia INS-SBM24 is a compact 1-button VoIP/SIP and Wi-Fi video door station engineered for modern access control and intercom integration. Operating on a Linux system, it provides seamless interoperability across IP networks using standard protocols such as SIP, ONVIF, RTSP, and TCP/IP, making it easily adaptable to indoor monitors, mobile applications, and third-party security management platforms.

Featuring a 2MP CMOS camera with digital WDR and a 110-degree horizontal viewing angle, the INS-SBM24 delivers clear 1080p Full HD video streams under varying lighting conditions. Combined with an integrated 13.56 MHz IC card reader, a door release relay, clear G.711 audio with echo cancellation, and flexible PoE or DC 12V power options, this IP65-rated unit offers a versatile surface-mount door entry solution for residential and commercial entry points.

Key Features

• 2MP CMOS camera delivering 1920 × 1080 Full HD video resolution.
• Wide field of view with 110° horizontal, 60° vertical, and 125° diagonal coverage.
• Integrated 13.56 MHz IC card reader supporting up to 60,000 cards and optional Bluetooth access.
• Single relay output for electric door unlock integration and 2 alarm input channels.
• Comprehensive network protocol support including SIP, ONVIF, RTSP, RTP, UDP, TCP, HTTP, and DHCP.
• Hardware connectivity options including 1x adaptive 10/100 Mbps RJ45 port, 1x RS485 port, and Wiegand support.
• Integrated security features including tamper alarm monitoring.
• Compact plastic enclosure measuring 130 × 50 × 28 mm designed for surface mounting.

Benefits

• Broad interoperability through native SIP and ONVIF protocol support for seamless communication with IP indoor monitors and VMS platforms.
• High-definition video clarity delivered by a 2MP CMOS camera with digital WDR and H.264/H.265 compression.
• Clear two-way audio communication backed by an integrated microphone, speaker, and G.711 codec with echo cancellation.
• Built-in RFID access control with a 13.56 MHz IC card reader capable of handling up to 60,000 card entries.
• Flexible power supply deployment supporting either standard PoE (802.3af) or a DC 12V/2A input.
• Durable IP65-rated surface-mount construction suitable for outdoor operating environments between -40°C and +55°C.

Technical Specifications

Specification	Value
Operating System	Linux-based system
Housing Material	Plastic
Button Type	Mechanical
Power Supply	PoE (802.3af) or DC 12V/2A
Ethernet Port	1 × RJ45, 10/100 Mbps adaptive
Wiegand Port	Supported
RS485 Port	1
Network Protocols	SIP, ONVIF, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP
Wi-Fi	IEEE 802.11 b/g/n, 2.4GHz (optional)
Card Reader Frequency	IC card (13.56 MHz), Bluetooth (optional)
Card Capacity	Up to 60,000 cards
Relay Output	1
Alarm Inputs	2
Tamper Alarm	Supported
Camera Sensor	2MP CMOS with digital WDR
Video Resolution	1920 × 1080 (Full HD)
Video Compression Codec	H.264 / H.265
Viewing Angle	110° (H) / 60° (V) / 125° (D)
Audio Codec	G.711 with Echo Cancellation
Audio Hardware	Built-in microphone and speaker
Operating Temperature	-40°C to +55°C
Operating Humidity	10% to 90% (non-condensing)
Ingress Protection Rating	IP65
Mounting Type	Surface mounting
Dimensions	130 × 50 × 28 mm

Applications

• Residential access points for single-family residences, villas, or multi-apartment complexes integrated with SIP indoor stations.
• Commercial office entrance management requiring integrated RFID card reading and door lock relay control.
• Retrofit or new-build building entry systems needing a compact, PoE-powered surface-mount video door station.

Installation Notes

• Mount the unit directly onto a flat wall surface using the compact 130 × 50 × 28 mm surface-mounting footprint.
• Connect to the local network using a standard RJ45 cable providing IEEE 802.3af PoE or connect an external DC 12V/2A supply.
• Ensure proper wiring of the single relay output to the door lock mechanism and configure the 2 input channels as needed.

FAQ

How is the Inspinia INS-SBM24 powered?

The intercom can be powered using standard Power over Ethernet (PoE 802.3af) through its RJ45 network port or via a DC 12V/2A external power supply. Explore more Inspinia KNX solutions for professional building automation projects.

What access control capabilities are integrated into the INS-SBM24?

The unit features a built-in 13.56 MHz IC card reader supporting up to 60,000 cards, one relay output for door control, two input channels, and tamper alarm detection. For certificates and current technical files, refer to the official Inspinia documentation.

Does this intercom support standard IP video protocols?

Yes, the INS-SBM24 supports open protocols including SIP and ONVIF, along with H.264 and H.265 video encoding for video management and IP system integration.

Is the unit suitable for outdoor installations?

Yes, it features an IP65 protection rating against dust and water, with an operating temperature range of -40°C to +55°C.

What is the exact product model?

The order/model code for this page is INS-SBM24. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by Inspinia.

Conclusion

The Inspinia INS-SBM24 1-Button VoIP/SIP & Wi-Fi Intercom offers an efficient, feature-rich outdoor entry control solution in a compact footprint. Installers and system integrators can review our professional project support options.

With Full HD video, integrated IC card reader, standard SIP/ONVIF support, and PoE power, it provides dependable door entry integration for professional building automation projects.
