M/P960.1 KNX 960mA Power Supply
43 people are viewing this product right now
€150,86
Shipping calculated at checkout.
In stock
Guarantee Safe and Secure Payment Checkout

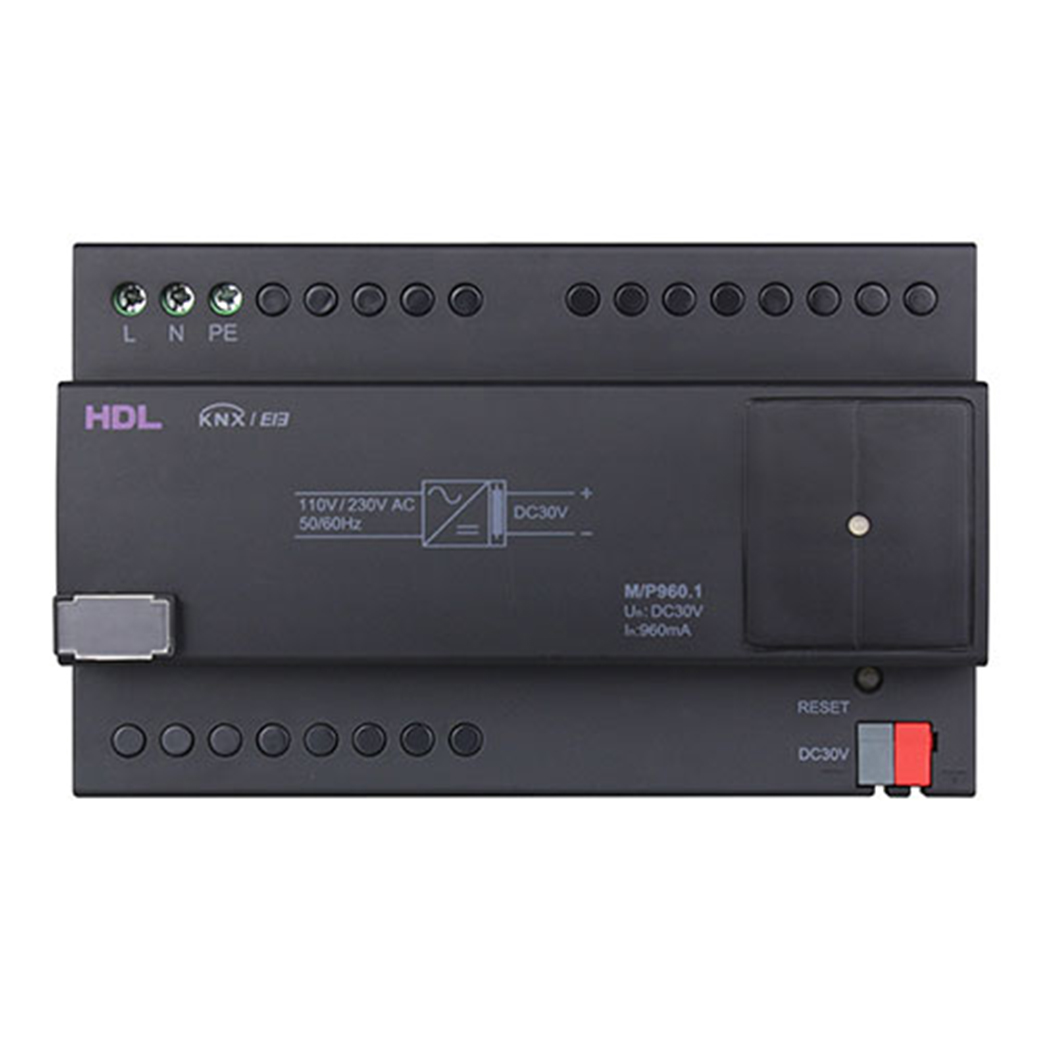

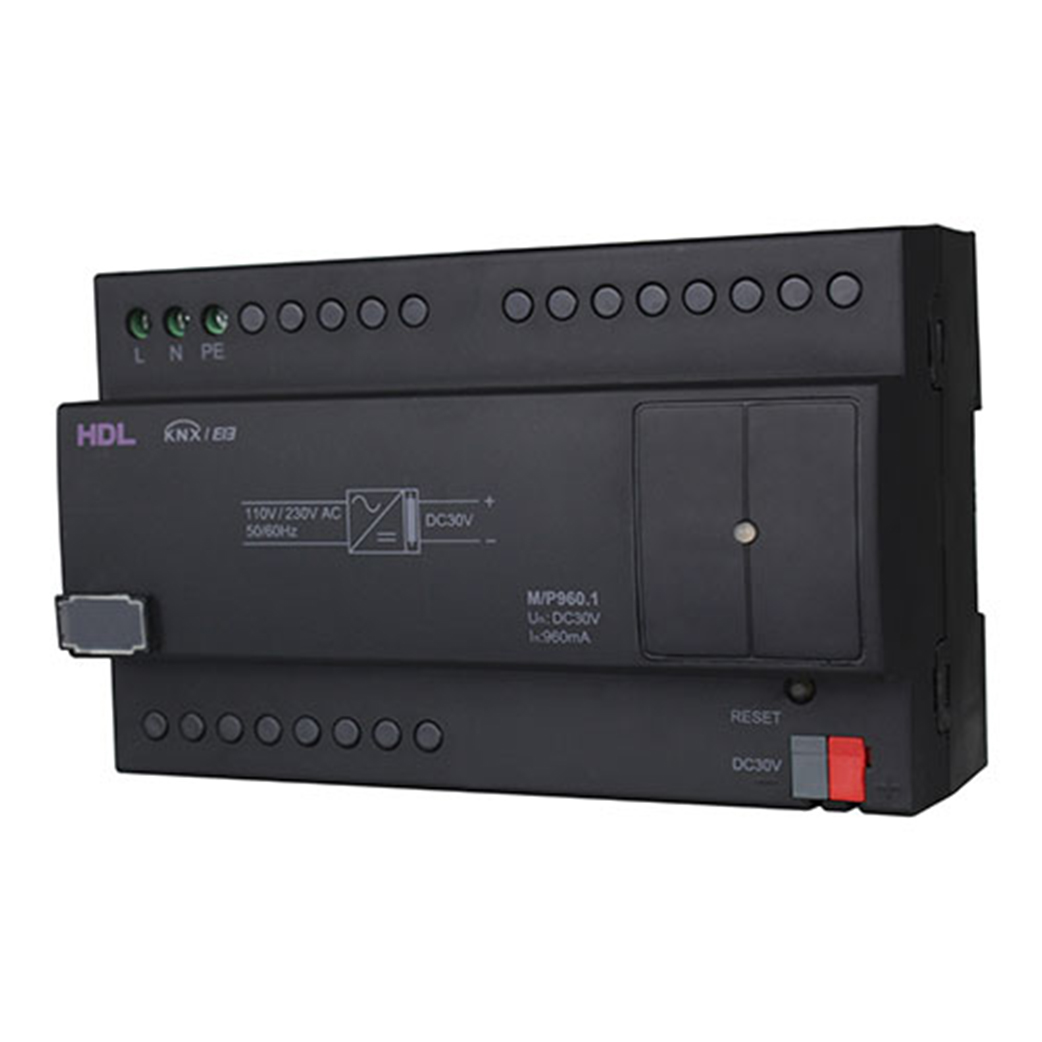

M/P960.1 KNX 960mA Power Supply: High-Capacity DIN-Rail Module
The device features clear LED status indicators (Green for normal output, Red for overload) and a dedicated reset button for easy maintenance.
1. M/P960.1 KNX 960mA Power Supply: Technical Specifications and Protection
This power supply module guarantees stable voltage and comprehensive protection for all connected KNX devices, including actuators and sensors.
Core Technical Details:
- Product Code: M/P960.1
- Output Current: High capacity of 960mA to the KNX/EIB bus.
- Input Voltage: Wide range of AC100-240V (50/60Hz).
- Output Voltage: Stable 30V DC.
- Efficiency: Low power loss of < 20%.
Safety and Maintenance:
- Robust Protection: Features overload, over current, and output short circuit protection.
- User Controls: Dedicated push button allows the user to reset the EIB device by keeping the button pressed for 2 seconds.
- Status Indication: Green LED indicates normal output; Red LED signals an overload condition (I > Imax).

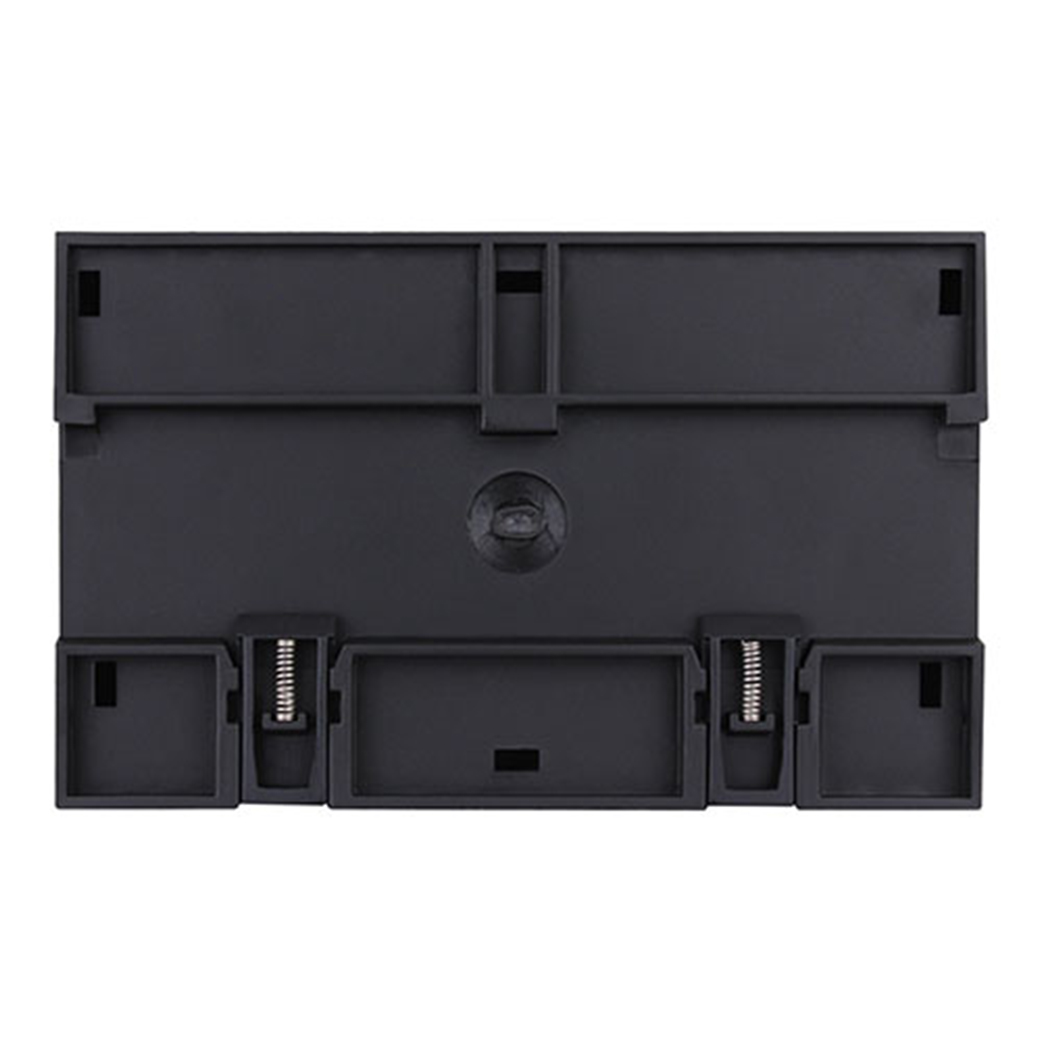

- Installation: Designed for professional 35mm DIN rail installation (Dimensions: 144x90x64mm, IP20 rated).
2. Seamless KNX System Integration
The M/P960.1 is the foundation for a reliable KNX system, ensuring stable communication with all your building automation devices.
- It powers all field devices, from control interfaces like the Interra 4 Touch Panel (Internal Link) to complex control units such as the KNX Combo+ Switch Actuator (Internal Link).
- Communication: Fully compliant with the KNX protocol for reliable data transmission (Cable diameter: 0.6 – 0.8mm).
- Environmental Resilience: Wide working temperature range of -5°C to +45°C.
