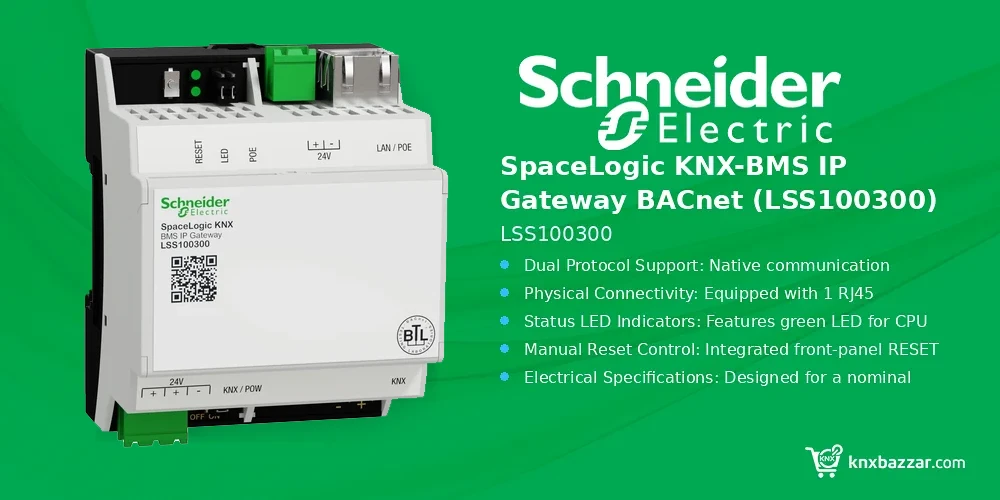

Schneider SpaceLogic KNX-BMS IP Gateway BACnet (LSS100300)

Description

Introduction

The Schneider SpaceLogic KNX-BMS IP Gateway BACnet system (SKU: LSS100300) is a multifunctional building automation interface designed to enable seamless integration of KNX installations into EcoStruxure Building Operation platforms. Utilizing BACnet/IP communication protocol alongside KNX TP, this gateway establishes a central communication bridge that optimizes energy usage and leads to significant operational cost savings. This device is part of our KNX Gateway range.

Specifically engineered for modern construction and building upgrades, this gateway maximizes flexibility, user comfort, security, and overall operational profitability. By streamlining data exchange between KNX field networks and higher-level management systems, it significantly reduces installation time while offering an adaptable infrastructure for long-term facility management.

Key Features

• Dual Protocol Support: Native communication interface supporting both BACnet/IP and KNX protocols.
• Physical Connectivity: Equipped with 1 RJ45 Ethernet port (10BASE-T/100BASE-TX) and 1 TP-UART2 interface.
• Status LED Indicators: Features green LED for CPU load and green/red LED for KNX power and reset status monitoring.
• Manual Reset Control: Integrated front-panel RESET button for simple service and maintenance operations.
• Electrical Specifications: Designed for a nominal supply voltage of 24 V DC with power consumption between 2 W and 12 W.
• Environmental Standard Compliance: Built to IP20 protection degree and compliant with IEC 60950-1 standards.

Benefits

• Enables seamless integration of KNX twisted-pair networks into EcoStruxure Building Operation platforms.
• Optimizes energy usage through centralized control, leading to significant reductions in operational costs.
• Provides high installation flexibility and adaptability, saving setup and commissioning time.
• Designed for modern buildings to maximize flexibility, comfort, security, and long-term financial return.
• Promotes sustainability with a reduced total lifecycle carbon footprint of 80 kg CO2 eq. and packaging containing at least 70% recycled cardboard.

Technical Specifications

Specification	Value
Series	KNX
Product or Component Type	BACnet/IP gateway
Communication Port Protocol	BACnet, KNX
LED Indicator	LED (green) for CPU load, LED (green/red) for KNX powered/reset
Control Type	RESET button
Ethernet Port	10BASE-T/100BASE-TX
IP Degree of Protection	IP20
Nominal Supply Voltage [Us]	24 V DC
Physical Interface	1 RJ45, 1 TP-UART2
Height	90 mm
Width	71 mm
Depth	61 mm
Nominal Operating Ambient Temperature	0…45 °C
Operating Altitude	<= 2000 m
Relative Humidity	0…93 %
Standards	IEC 60950-1
Number of Units in Package	1
Package Weight	239.000 Lbs
Warranty	18 months
Power Consumption	2 W – 12 W

Applications

• Integration of KNX field devices into BACnet/IP EcoStruxure Building Operation systems in commercial facilities.
• Centralized energy management and automation projects aimed at reducing operational expenditures in smart buildings.

Installation Notes

• Mount the unit in an environment meeting IP20 protection requirements, maintaining operating ambient temperatures between 0 °C and 45 °C at altitudes up to 2000 m.
• Connect a stable 24 V DC nominal supply voltage and establish communication via the RJ45 Ethernet port and TP-UART2 interface.
• Utilize the onboard green and red status LEDs during setup to monitor CPU load, KNX power status, and device resets.

Developer Resources

• Consult official Schneider technical documentation and installation guides for EcoStruxure integration procedures.

FAQ

What primary protocols are supported by the Schneider LSS100300 gateway?

The Schneider SpaceLogic LSS100300 supports BACnet/IP and KNX communication protocols. Explore more Schneider KNX products for professional building automation projects.

What is the operating voltage requirement for this device?

The gateway operates on a nominal supply voltage of 24 V DC, consuming between 2 W and 12 W. For certificates and current technical files, refer to the manufacturer technical documentation.

What physical interfaces are present on the unit?

It provides 1 RJ45 Ethernet port (10BASE-T/100BASE-TX) and 1 TP-UART2 interface.

What standards does the Schneider SpaceLogic LSS100300 meet?

The product complies with the IEC 60950-1 safety standard and holds an IP20 protection rating.

What is the exact product model?

The order/model code for this page is LSS100300. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by Schneider.

Conclusion

The Schneider SpaceLogic KNX-BMS IP Gateway BACnet (LSS100300) delivers a reliable, high-efficiency bridging solution between KNX networks and BACnet/IP EcoStruxure Building Operation platforms. With its flexible configuration, compliant hardware, and energy-optimizing central control features, it is an essential component for modern smart building management systems. Installers and system integrators can review our KNX dealer program options.
