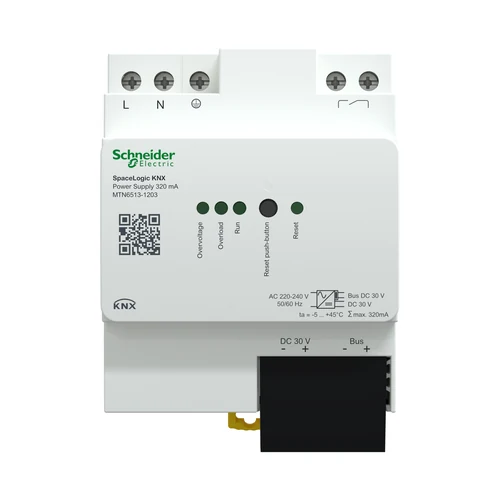

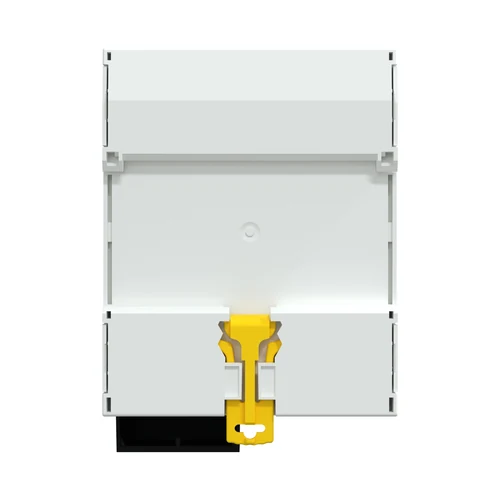

Schneider SpaceLogic KNX Power Supply REG-K/320mA+30Vdc (MTN6513-1203)

Description

Introduction

The Schneider SpaceLogic KNX Power Supply REG-K/320mA+30Vdc (SKU: MTN6513-1203) is a foundational infrastructure component designed to generate and supply system voltage for KNX twisted-pair building automation lines. Engineered as a SELV (Safety Extra Low Voltage) power supply with an integrated decoupling choke, this unit delivers a stable 30 V DC output to maintain seamless communication and reliable device power across intelligent control networks. This device is part of our professional KNX System Components range.

Specifically built to maximize system stability, operational flexibility, and energy efficiency, the SpaceLogic KNX power supply simplifies panel architecture while optimizing lifecycle costs. Its robust performance and standardized bus voltage delivery make it an essential selection for electrical consultants, system integrators, and procurement teams executing modern residential or commercial automation projects.

Key Features

• Part of the Schneider SpaceLogic KNX product series (SKU: MTN6513-1203).
• Generates 30 V DC bus output voltage with 320 mA maximum current.
• Includes integrated choke coil equipment.
• SELV power supply type for low-voltage safety compliance.
• Clear onboard LED signaling for operation monitoring.
• Wide operating ambient temperature range from -5 °C to 45 °C.
• Operates in relative humidity conditions up to 93 % (non-condensing) and altitudes up to 2000 m.

Benefits

• Provides a clean 30 V DC output voltage at 320 mA maximum output current to power connected KNX line devices.
• Features an integrated choke coil to decouple the power supply output from bus data communications, reducing component count.
• Certified SELV design ensuring high levels of electrical safety for control panel installations.
• Integrated LED signaling provides immediate visual diagnostic feedback on device operation status.
• Supports KNX TP256 topology setups, ensuring scalability for diverse line configurations.
• Eco-conscious engineering with minimal packaging waste and high recycled content materials.

Technical Specifications

Specification	Value
Series	SpaceLogic KNX
Product or component type	Power supply
Bus type	KNX
Provided equipment	Choke
Power supply type	SELV
Topology	TP256
Colour tint	White
Maximum short-circuit current	1
Maximum output current	320
Output voltage	30 V DC
Device signaling	LED
Height	90
Width	72
Height (depth)	65
Relative Humidity	93 % non-condensing
Nominal Operating Ambient Temperature	-5…45 °C
Number of units in package	1
Package weight (Lbs)	331.000
Warranty	18
Number of bus terminal modules	256

Applications

• Centralized KNX bus voltage generation for commercial and residential smart automation panels.
• Power distribution across KNX TP256 line topologies requiring reliable 30 V DC SELV supply.
• Energy-optimized building management installations demanding stable system components.

Installation Notes

• Mount the unit on standard DIN-rail infrastructure in a controlled electrical cabinet operating between -5 °C and 45 °C.
• Ensure environmental relative humidity does not exceed 93 % (non-condensing) and clear terminal connections are established in line with standard KNX wiring practices.

Developer Resources

• Consult Schneider Electric official datasheets for detailed technical specifications and dimensional diagrams.
• Download the appropriate ETS database file corresponding to SKU MTN6513-1203 for parameter configuration and line topology integration.

FAQ

What is the maximum output current of the Schneider MTN6513-1203 power supply?

The Schneider SpaceLogic KNX power supply provides a maximum output current of 320 mA at 30 V DC. Explore more Schneider KNX products for professional building automation projects.

Does the Schneider MTN6513-1203 include an integrated choke?

Yes, this model comes equipped with an integrated choke to decouple power from bus line communication data. For certificates and current technical files, refer to the official Schneider product page.

What are the ambient operating temperature limits for this power supply?

The power supply is rated to operate in ambient temperatures ranging from -5 °C to 45 °C.

What is the exact product model?

The order/model code for this page is MTN6513-1203. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by Schneider.

Where can I find the official technical documentation?

Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.

Conclusion

The Schneider SpaceLogic KNX Power Supply REG-K/320mA+30Vdc (MTN6513-1203) delivers predictable 30 V DC bus power with integrated choke decoupling and SELV safety. Its high operational reliability and standardized design make it an ideal choice for powering stable, long-lasting KNX automation projects. Installers and system integrators can review our become a KNX dealer options.
