Description
Introduction

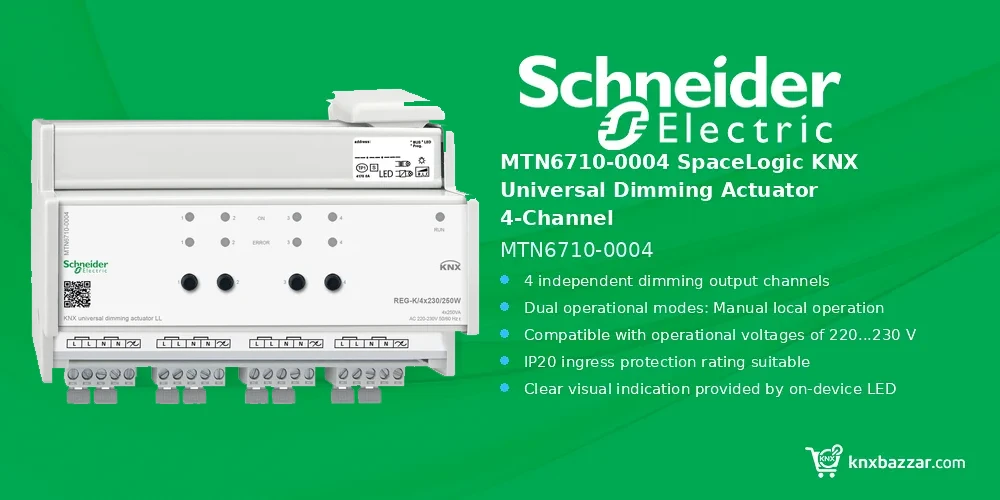

The Schneider MTN6710-0004 is an advanced 4-channel universal dimming actuator designed to expand the channel capacity of a SpaceLogic KNX Universal Dimming Master system. Engineered for installation on standard DIN rails, this device allows integrators and electrical installers to implement centralized, precise brightness control across varied lighting setups in smart residential and commercial environments. This device is part of our KNX Actuators range.
Developed specifically for modern builds and system expansions, the unit supports both manual local control and automated operation over the KNX bus network. Centralizing lighting control with KNX optimizes overall energy consumption, leading to reduced operational costs while delivering flexible, customizable lighting scenes.
Key Features
- 4 independent dimming output channels.
- Dual operational modes: Manual local operation and KNX bus control.
- Compatible with operational voltages of 220…230 V and 110…130 V at 50/60 Hz.
- IP20 ingress protection rating suitable for distribution panel installation.
- Clear visual indication provided by on-device LED signaling.
- Modular 8-module form factor (18 mm per module) for standard DIN rail mounting.
Benefits
- Expands lighting channel capacity seamlessly when combined with a SpaceLogic KNX Universal Dimming Master.
- Centralized KNX lighting management optimizes overall building energy utilization and operational performance.
- Flexible operational control through both manual local interface and automated KNX bus integration.
- Local LED status signaling enables quick visual diagnostics and operational monitoring.
- Compact 8-module DIN rail design allows efficient utilization of cabinet space.
Technical Specifications
Applications
- Centralized dimming and lighting control in commercial offices, hospitality, and public facilities.
- Scalable lighting automation in high-end residential KNX smart home installations.
Installation Notes
- Mount the 8-module wide unit on standard 35 mm DIN rails inside an IP20-rated distribution panel.
- Verify local line voltage parameters (220…230 V or 110…130 V at 50/60 Hz) prior to power connection and commissioning.
FAQ
How many channels does the Schneider MTN6710-0004 dimming actuator feature?
The Schneider MTN6710-0004 provides 4 dimming output channels for flexible lighting control. Explore more Schneider KNX products for professional building automation projects.
What is the mounting format and width of this unit?
The device is designed for DIN rail mounting and occupies 8 modules of 18 mm width. For certificates and current technical files, refer to the official Schneider documentation.
Can the actuator be operated manually?
Yes, the device supports both manual local control and automated KNX bus system operation.
What is the exact product model?
The order/model code for this page is MTN6710-0004. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
Where can I find the official technical documentation?
Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.
Conclusion
The Schneider MTN6710-0004 4-channel universal dimming actuator offers a scalable and robust expansion solution for KNX lighting automation. Its standard 8-module DIN rail footprint, support for dual line voltages, and flexible manual/bus operation make it a dependable choice for modern building infrastructure. Installers and system integrators can review our installer purchasing support options.
