Description
Introduction

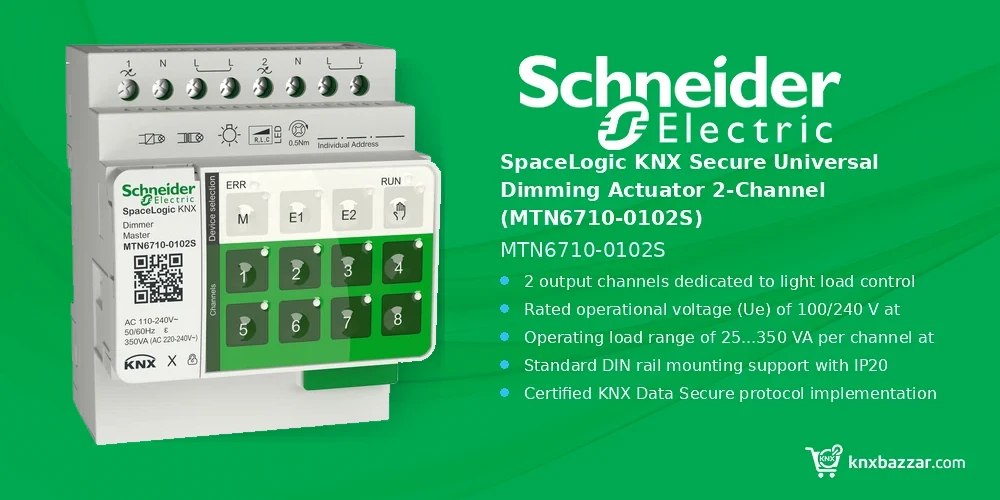

The Schneider SpaceLogic KNX Secure Universal Dimming Actuator 2-Channel (MTN6710-0102S) is designed for intelligent building management and smart home automation on the KNX bus system. Designed to control light loads from 25 to 350 VA per channel at 230 V, this 2-output actuator operates at a rated operational voltage of 100/240 V AC at 50…60 Hz. This device is part of our KNX Actuators products range.
Equipped with certified KNX Data Secure capabilities, the MTN6710-0102S protects network communications from unauthorized manipulation. Featuring a compact DIN rail form factor with Master Extension compatibility and support for ETS Express or eConfigure software commissioning, this device combines rapid installation with Schneider Electric Green Premium sustainability standard compliance.
Key Features
- 2 output channels dedicated to light load control.
- Rated operational voltage (Ue) of 100/240 V at 50…60 Hz.
- Operating load range of 25…350 VA per channel at 230 V.
- Standard DIN rail mounting support with IP20 protection degree.
- Certified KNX Data Secure protocol implementation.
- Compact housing dimensions measuring 90 mm width, 71 mm height, and 66 mm depth.
Benefits
- Ensures comprehensive system protection through certified KNX Data Secure encryption.
- Provides operational flexibility using toolless Master Extension expansion options with unified sizing.
- Accelerates project delivery using ETS Express commissioning or eConfigure setup software.
- Supports reliable light dimming across 2 independent channels rated at 25 to 350 VA at 230 V.
- Complies with SE Green Premium environmental standards utilizing recycled packaging materials.
Technical Specifications
Applications
- Commercial KNX smart building installations requiring encrypted light dimming actuation.
- Residential KNX automation systems needing 2-channel light control mounted on DIN rails.
Installation Notes
- Mount the actuator securely onto a standard DIN rail inside an IP20 rated enclosure.
- Connect the 100/240 V mains supply (50…60 Hz) and the standard KNX bus lines to the appropriate terminals.
- Utilize toolless Master Extension interfaces when expanding the installation with complementary modules.
- Commission and configure parameters using ETS Express commissioning tool or eConfigure software.
Developer Resources
- Product Data Sheet and official User Manual for MTN6710-0102S.
- eConfigure software database files and ETS Express setup documentation.
FAQ
What light load range does the Schneider MTN6710-0102S support?
The actuator supports light loads ranging from 25 to 350 VA at 230 V across its 2 output channels. Explore more Schneider KNX products for professional building automation projects.
What software tools can be used to commission this device?
It can be commissioned using ETS Express commissioning or eConfigure software. For certificates and current technical files, refer to the official Schneider product page.
Does the MTN6710-0102S support KNX Data Secure?
Yes, it is certified with KNX Data Secure capabilities for encrypted network communication.
What is the mounting mechanism for this dimming actuator?
It is designed for standard DIN rail mounting within IP20 rated enclosures.
What is the exact product model?
The order/model code for this page is MTN6710-0102S. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
Conclusion
The Schneider SpaceLogic KNX Secure Universal Dimming Actuator 2-Channel (MTN6710-0102S) offers professional integrators a secure, reliable, and easy-to-commission solution for 2×350 VA dimming applications on standard KNX bus infrastructure. Installers and system integrators can review our professional project support options.
