Description
Introduction

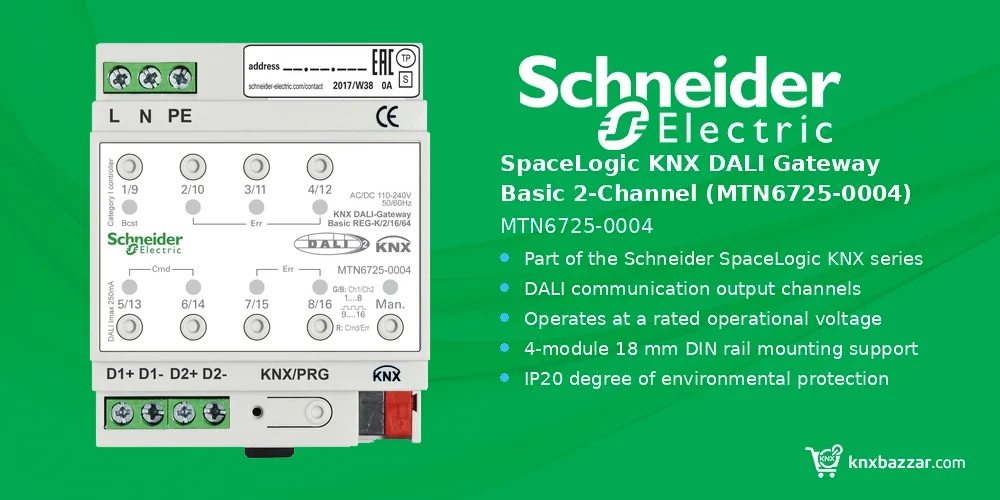

The Schneider SpaceLogic KNX DALI Gateway Basic 2-Channel (MTN6725-0004) interfaces the KNX bus system directly with 2 DALI output channels. Designed as a Single Master Application Controller, this unit simplifies centralized lighting management, optimizes energy usage, and enables operational cost savings across commercial and residential automation systems. This device is part of our KNX Gateway products range.
Engineered for compact switchboard installation, the gateway mounts on a standard 4-module 18 mm DIN rail. It includes integrated LED status signaling and supports updatable software, providing integrators and consultants with a highly flexible solution for new office, hospitality, school, and commercial building projects.
Key Features
- Part of the Schneider SpaceLogic KNX series.
- 2 DALI communication output channels.
- Operates at a rated operational voltage of 100…240 V AC (50/60 Hz).
- 4-module 18 mm DIN rail mounting support.
- IP20 degree of environmental protection.
- Local LED diagnostic signaling on the device.
Benefits
- Optimizes building energy usage through integrated KNX-based centralized lighting control.
- Provides 2 independent DALI output channels working as a Single Master Application Controller.
- Reduces cabinet space requirements using a compact 4-module DIN rail design.
- Supports updateable software to allow continuous technical and operational flexibility.
- Features local LED signaling for straightforward status diagnostics during maintenance.
Technical Specifications
Applications
- Lighting system automation in office buildings, schools, and small-scale commercial environments.
- Centralized illumination management in hotel guest rooms and hospitality projects.
- DALI lighting integration in critical buildings and modern commercial facility projects.
Installation Notes
- Mounts onto standard DIN rail, requiring 4 modules (18 mm per module) within switchboards.
- Connects to line power rated at 100…240 V AC, 50/60 Hz.
- Intended for installation in dry indoor environments with an IP20 protection classification.
Developer Resources
- Official Schneider documentation, product data sheets, and user guides are available through the manufacturer portal.
FAQ
How many DALI output channels does the MTN6725-0004 provide?
The Schneider MTN6725-0004 gateway features 2 independent DALI output channels. Explore more Schneider automation devices for professional building automation projects.
What is the mounting size of the SpaceLogic KNX DALI Gateway?
It is designed for DIN rail mounting and occupies 4 modules of 18 mm each.
What supply voltage range is compatible with this unit?
The gateway operates with a rated operational voltage range of 100…240 V AC at 50/60 Hz.
What is the exact product model?
The order/model code for this page is MTN6725-0004. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
Where can I find the official technical documentation?
Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.
Conclusion
The Schneider SpaceLogic KNX DALI Gateway Basic 2-Channel (MTN6725-0004) delivers efficient lighting integration by bridging KNX system buses with DALI networks. Its compact 4-module DIN rail mounting, integrated LED diagnostics, and updateable firmware make it a reliable choice for modern commercial lighting infrastructure. Installers and system integrators can review our professional project support options.
