Description
Introduction

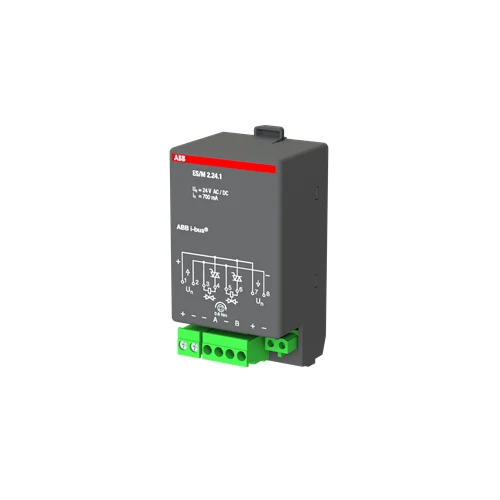

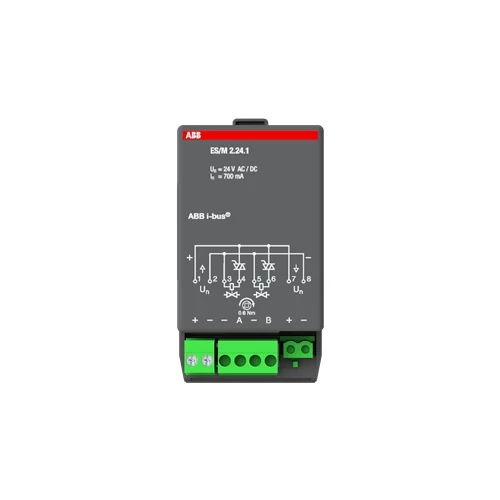

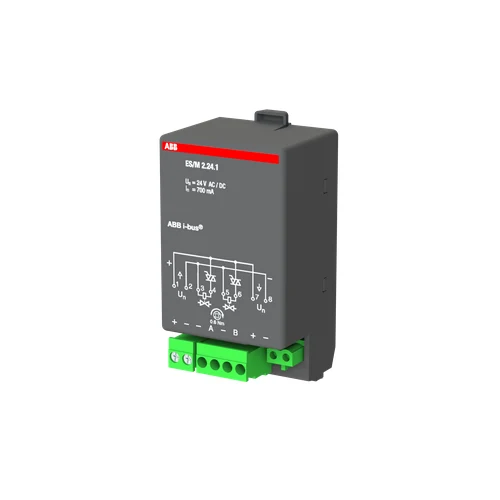

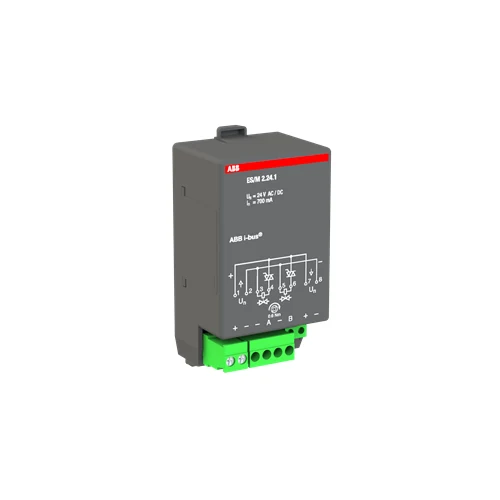

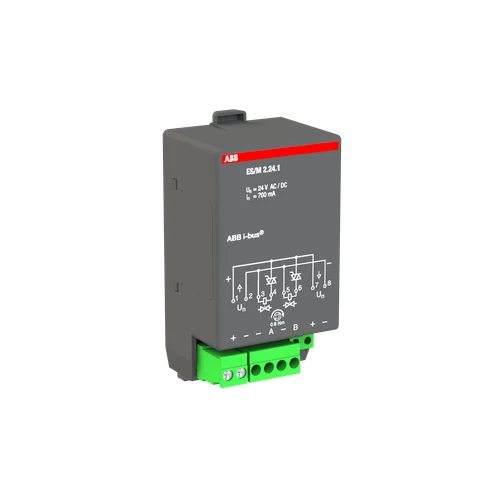

The ABB ES/M2.24.1 is an electronic switch actuator module in the KNX Actuators category. It is a 2-fold, 24 V module designed for plugging into the Room Controller Basis Device.
This module provides two overload-proof, noise-free and wear-resistant outputs for controlling electrothermal valve drives. It supports valve drives with a voltage of 12/24 V AC/DC and a maximum continuous current of 700 mA.
Key Features
- Brand: ABB
- SKU: ES/M2.24.1
- Extended Product Type: ES/M2.24.1
- Product ID: 2CDG110014R0011
- Catalog Description: ES/M2.24.1 Electronic Switch Actuator Module, 2-fold, 24 V
- Number of Outputs: 2
- Output Voltage: 24 V DC
- Manual Operation: No
Benefits
- Two outputs support control of two electrothermal valve-drive circuits from a single module.
- Overload-proof outputs help protect the output stage within the stated product use.
- Noise-free and wear-resistant output technology supports quiet operation and reduced mechanical wear compared with switching methods that rely on moving contacts.
- Designed specifically as a plug-in module for the Room Controller Basis Device, supporting structured system planning around that device.
- Suitable for electrothermal valve drives with 12/24 V AC/DC voltage and up to 700 mA continuous current, as stated in the product description.
- No batteries are required, simplifying procurement and lifecycle planning for this module.
Technical Specifications
Applications
- Plug-in actuator module use with the Room Controller Basis Device.
- Control of electrothermal valve drives with 12/24 V AC/DC voltage.
- Projects requiring a 2-fold electronic switch actuator module in the KNX Actuators category.
- BOQ and replacement-item matching where ABB ES/M2.24.1, Product ID 2CDG110014R0011, or EAN 4016779583626 is specified.
Installation Notes
- Install the module only as a module for plugging into the Room Controller Basis Device, as described in the product data.
- Before ordering or commissioning, verify the exact SKU ES/M2.24.1, Product ID 2CDG110014R0011, and EAN 4016779583626 against the project BOQ and official documentation.
- Refer to the ABB Instructions and Manuals document GHQ6607016P0002 and the Installing and Commissioning Manual 2CDC514021D0201.
- Use the ABB Wiring Diagram reference 9AKK108469A6564 when validating wiring requirements.
- Confirm that connected valve drives match the stated 12/24 V AC/DC voltage requirement and maximum 700 mA continuous current; the product data states that it is not suitable for C-load and has no manual operation.
Developer Resources
- Manufacturer product page: https://new.abb.com/products/en/2CDG110014R0011/es-m2-24-1
- Instructions and Manuals reference: GHQ6607016P0002
- Installing and Commissioning Manual reference: 2CDC514021D0201
- Wiring Diagram reference: 9AKK108469A6564
- Declaration of Conformity – CE reference: 2CDK514081D2701
- KNXbazzar category page: https://knxbazzar.com/product-category/knx-actuators/
- KNXbazzar ABB brand page: https://knxbazzar.com/knxshop/?brand=abb
FAQ
What is the ABB ES/M2.24.1 used for?
The ABB ES/M2.24.1 is a 2-fold, 24 V electronic switch actuator module for plugging into the Room Controller Basis Device. It controls electrothermal valve drives with 12/24 V AC/DC voltage and up to 700 mA continuous current. For dealer and project support, visit KNX dealer program.
How many outputs does the ABB ES/M2.24.1 have?
The product data states that the ABB ES/M2.24.1 has 2 outputs.
Does the ABB ES/M2.24.1 have manual operation?
No. The product data lists Manual Operation as No.
Is the ABB ES/M2.24.1 suitable for C-load?
No. The product data lists Suitable for C-Load as No.
Which identifiers should be checked before ordering?
Check the SKU ES/M2.24.1, Product ID 2CDG110014R0011, EAN 4016779583626, and the catalog description against the BOQ, project documentation, and ABB documentation.
What is the exact product model?
The order/model code for this page is ES/M2.24.1. Match it against project documents before purchase.
Conclusion
The ABB ES/M2.24.1 is a clearly identified 2-fold, 24 V electronic switch actuator module for the Room Controller Basis Device, with two overload-proof, noise-free and wear-resistant outputs for electrothermal valve drives.
For accurate procurement, match ES/M2.24.1, Product ID 2CDG110014R0011, and EAN 4016779583626 with the project BOQ and ABB documentation before purchase or installation.
