Description
Introduction

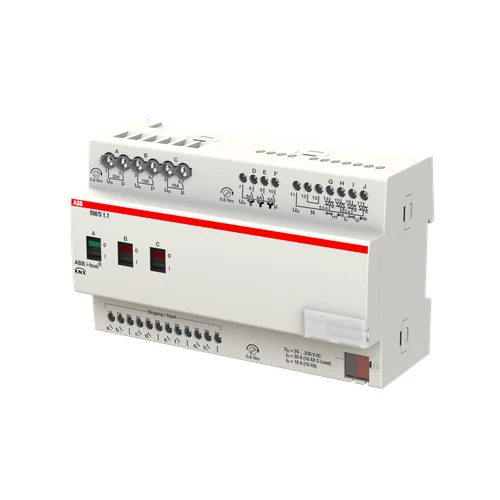

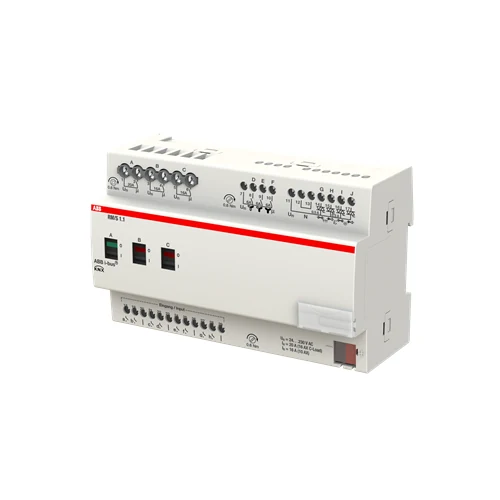

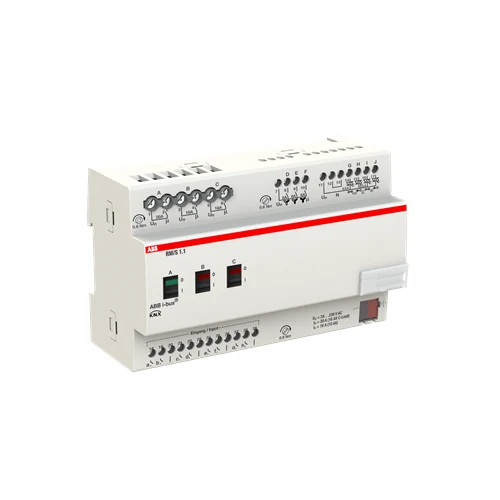

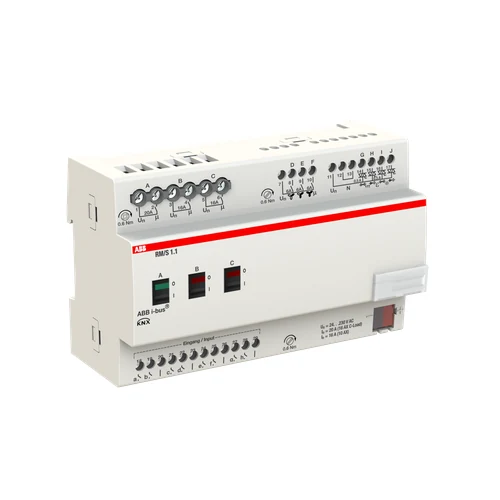

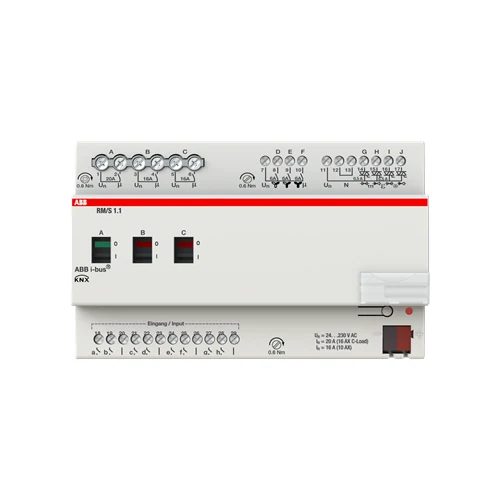

ABB RM/S1.1 is a Room Master, Basic, MDRC device in the KNX Actuators category, identified by SKU RM/S1.1 and Product ID 2CDG110094R0011. It is described for controlling apartment ranges with bath, typically in hotels and small apartments.
The device is part of the ABB KNX product range and is listed for KNX (TP) bus systems. The product data describes 8 inputs, 3 relay outputs, 3 fan outputs, and 2×2 electronic outputs for valve drives, with the device supplied as preconfigured and requiring VD3-File or higher.
Key Features
- Brand: ABB; SKU and Display Name: RM/S1.1.
- Extended Product Type: RM/S1.1; Product ID: 2CDG110094R0011.
- Catalog Description: RM/S1.1 Room Master, Basic, MDRC.
- Compatible Bus Systems: KNX (TP); Product Range: KNX.
- Number of Outputs: 10, with the long description identifying 3 relay outputs, 3 fan outputs, and 2×2 electronic outputs for valve drives.
- Number of Input Channels: 8; the long description states 8 binary inputs, while the specification entry also lists Number of Inputs as Analog (0 … 10 V / 4 … 20 mA) 8, so project teams should verify the required input type against official ABB documentation before final selection.
- Degree of Protection: IP20.
- Reference identifiers include EAN 4016779665568, Instructions and Manuals 2CDG941054P0004, Declaration of Conformity – CE 2CDK514012D0601, and EPLAN Data 9AAC189159_EPLAN.
Benefits
- Combines room-control functions for apartment ranges with bath in a single ABB Room Master, Basic, MDRC device.
- Suitable for project contexts described in the product data as hotels and small apartments.
- Supports KNX (TP) bus systems as listed in the product specifications.
- Provides a defined I/O structure in the archived product data, including 10 outputs and 8 input channels.
- Includes manual operation according to the product specification.
- Uses no batteries, with the product data listing Number of Batteries as 0.
Technical Specifications
Applications
- Control of apartment ranges with bath, as described in the ABB long description.
- Hotel room projects where the specified ABB RM/S1.1 Room Master, Basic, MDRC matches the bill of quantities.
- Small apartment automation projects using KNX (TP) where the stated I/O arrangement and preconfigured device profile are required.
- Procurement for KNX Actuators schedules that reference ABB RM/S1.1, Product ID 2CDG110094R0011, or EAN 4016779665568.
Installation Notes
- Confirm that the project design calls specifically for ABB RM/S1.1, Product ID 2CDG110094R0011, before ordering or installation.
- Use the device only where the documented KNX (TP) bus-system requirement and IP20 degree of protection are appropriate for the project design.
- The product data states that the device is preconfigured and that only VD3-File or higher exists; integrators should verify the correct project file requirement during engineering.
- Check the ABB manual reference 2CDG941054P0004 and any current manufacturer information before commissioning.
- Because the available product data contains different wording for the input type, match the required input functions in the BOQ and official documentation before purchase.
Developer Resources
- Manufacturer product URL: https://new.abb.com/products/en/2CDG110094R0011/rm-s-1-1
- Instructions and Manuals reference: 2CDG941054P0004
- EPLAN Data reference: 9AAC189159_EPLAN
- Declaration of Conformity – CE reference: 2CDK514012D0601
- KNXbazzar ABB products: https://knxbazzar.com/knxshop/?brand=abb
- KNXbazzar KNX Actuators category: https://knxbazzar.com/product-category/knx-actuators/
FAQ
What is the ABB RM/S1.1 used for?
The product data describes ABB RM/S1.1 Room Master, Basic, MDRC as a device to control apartment ranges with bath, typically in hotels and small apartments. For dealer and project support, visit KNX dealer program.
Which bus system is listed for ABB RM/S1.1?
The compatible bus system listed in the product specifications is KNX (TP).
How many inputs and outputs are listed for RM/S1.1?
The product data lists 8 input channels and 10 outputs. The long description identifies 8 inputs, 3 relay outputs, 3 fan outputs, and 2×2 electronic outputs for valve drives.
Is ABB RM/S1.1 preconfigured?
Yes. The long description states that the device is preconfigured and that only VD3-File or higher exists.
Which identifiers should buyers verify before ordering?
Buyers should verify SKU RM/S1.1, Product ID 2CDG110094R0011, Extended Product Type RM/S1.1, and EAN 4016779665568 against the BOQ and official project documentation.
What is the exact product model?
The order/model code for this page is RM/S1.1. Match it against project documents before purchase.
Conclusion
ABB RM/S1.1 Room Master, Basic, MDRC is a KNX (TP) room-control device for apartment ranges with bath, with product data describing use in hotels and small apartments, 8 input channels, 10 outputs, manual operation, and a preconfigured device profile.
For accurate procurement, confirm RM/S1.1, Product ID 2CDG110094R0011, EAN 4016779665568, the required VD3-File or higher, and the input/output requirements against the final BOQ and official ABB documentation. See official documentation at official manufacturer documentation.
