Description
Introduction

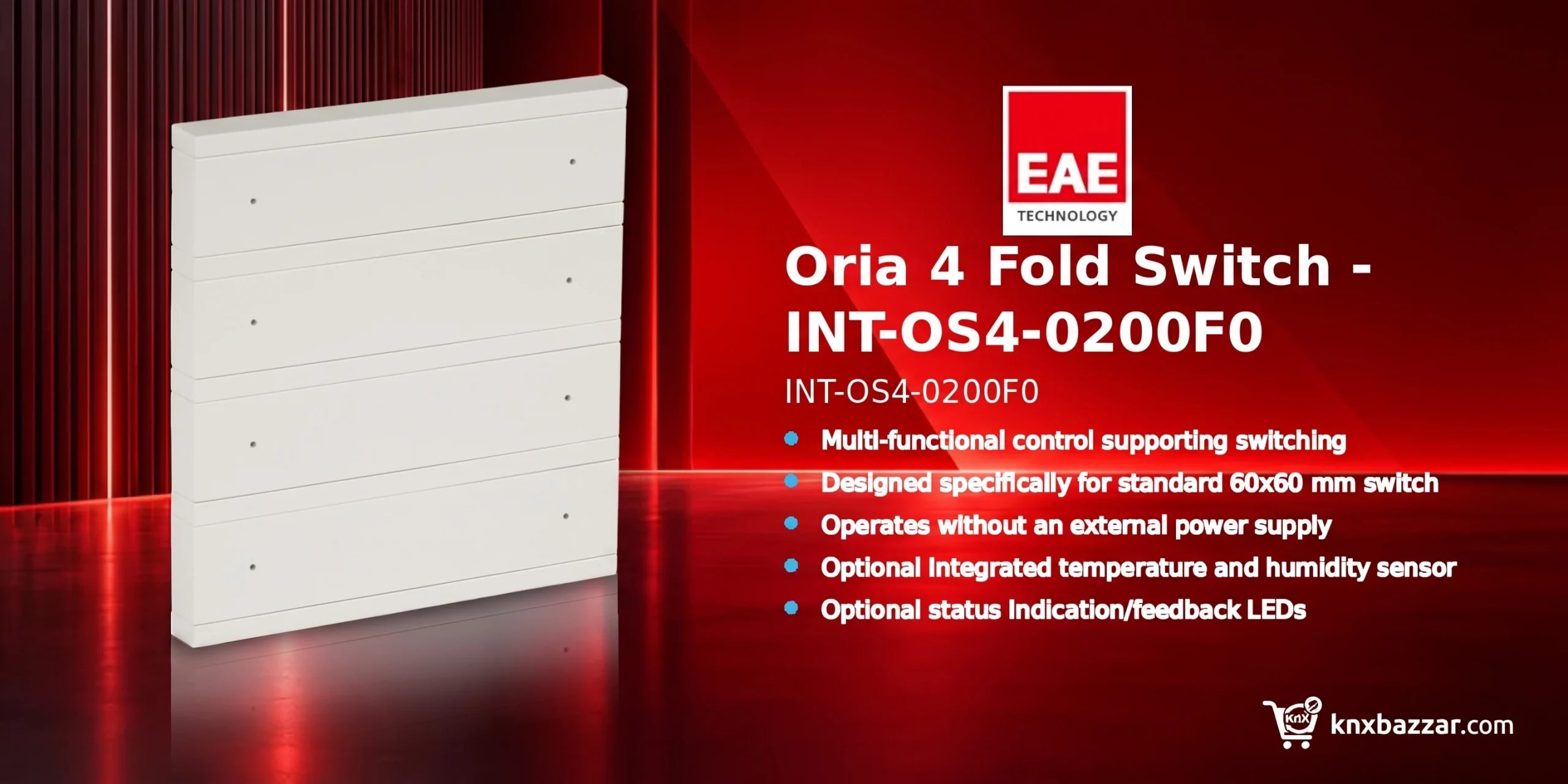

The EAE Oria 4 Fold Switch (SKU: INT-OS4-0200F0) is a flexible KNX push button interface designed for comprehensive control in modern building automation systems. Built to fit standard 60×60 mm switch junctions, this Oria series push switch provides precise control over lighting, dimming, shutter and blind drivers, audio speakers, scene recalls, and panic buttons. This device is part of our KNX Push Buttons products range.
Operating entirely without an external power supply, the INT-OS4-0200F0 features independent button configuration for each fold and can be extended up to 12 switches in a single frame. Its surface quality is backed by a lifetime guarantee against fingermarks, and the unit offers options for integrated temperature and humidity sensors, customizable icon labeling, and LED status feedback.
Key Features
- Multi-functional control supporting switching, dimming, shutter/blind drives, value/priority assignment, and scene control.
- Designed specifically for standard 60×60 mm switch junctions.
- Operates without an external power supply.
- Optional integrated temperature and humidity sensor capabilities.
- Optional status indication/feedback LEDs and customizable button labeling with optional icons.
- Fingermark-resistant surface quality backed by a lifetime guarantee.
- Available color options: Antique, Pearl White, Mustang Gray, and Anthracite.
Benefits
- Ensures effortless installation with standard 60×60 mm switch junction compatibility.
- Eliminates the need for external power supplies, simplifying wiring and reducing power infrastructure requirements.
- Delivers long-lasting aesthetic appeal with a fingermark-resistant surface backed by a lifetime guarantee.
- Provides high control versatility with independent button configuration extendable up to 12 switches per single frame.
- Offers aesthetic adaptability across modern interiors with four available color finishes: Antique, Pearl White, Mustang Gray, and Anthracite.
Technical Specifications
Applications
- Centralized lighting and dimming control across residential and commercial KNX networks.
- Shutter, blind, speaker, and scene execution in smart office and home automation setups.
- Panic button triggers and localized environmental monitoring via optional integrated temperature/humidity sensors.
Installation Notes
- Mount directly into standard 60×60 mm switch junction wall boxes.
- Connect directly to the KNX bus line without wiring any secondary external power source.
Developer Resources
- Refer to official EAE documentation and ETS configuration guidelines for proper push button parameterization and icon customization.
FAQ
Does the EAE Oria 4 Fold Switch require an external power supply?
No, the INT-OS4-0200F0 operates directly on the KNX system without requiring an external power supply. Explore more products from EAE for professional building automation projects.
What junction box size is required for installation?
The switch is designed for installation in standard 60×60 mm switch junctions.
What control functions can be assigned to the push buttons?
Functions include switching, dimming, shutter/blind control, value/priority assignment, scene calls, speaker control, and panic buttons.
Which color finishes are available for this product?
The Oria series switch comes in four finishes: Antique, Pearl White, Mustang Gray, and Anthracite.
What is the exact product model?
The order/model code for this page is INT-OS4-0200F0. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
Conclusion
The EAE Oria 4 Fold Switch (INT-OS4-0200F0) combines robust functionality with premium surface finishing for demanding KNX building automation projects. Its self-powered design, standard 60×60 mm junction fit, and customizable control features make it an exceptional choice for modern room control applications. Installers and system integrators can review our installer purchasing support options.
