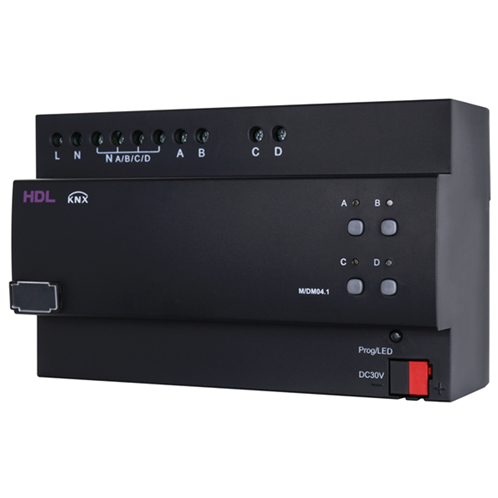

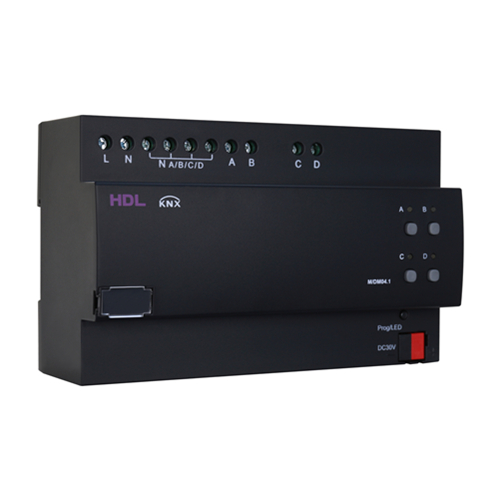

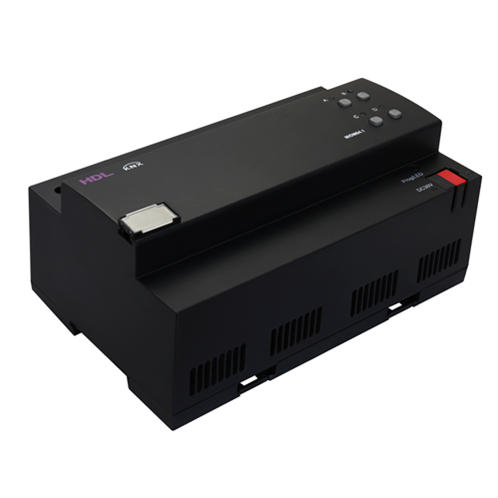

HDL-M/DM04.1 KNX 4CH 1.5A MOSFET Dimming Actuator: Compact Lighting Control

The HDL-M/DM04.1 KNX 4CH 1.5A MOSFET Dimming Actuator is a highly capable, DIN-Rail mounted solution for controlling medium-sized lighting loads in smart buildings. This model offers 4 independent output channels, each capable of handling 1.5A, with a reliable total maximum current of 6A.This dimming actuator provides essential compatibility by supporting both leading edge (recommended for inductive loads) and trailing edge dimming modes. For higher power output, channels can be paralleled to form a heavy current output.Fully compliant with European Safety Standards and KNX protocol, the HDL-M/DM04.1 ensures system integrity with robust safety features, including Short-circuit protection, Overload protection, and Overheat protection. It also provides manual control for switching and dimming directly on the device for easy maintenance and testing.

1. HDL-M/DM04.1 KNX 4CH 1.5A MOSFET Dimming Actuator: Dimming Versatility and Safety

The M/DM04.1 is engineered with advanced application functions and flexibility for diverse lighting control needs.

Dimming Technology & Flexibility:

  • Channel Count: 4 independent channels with 1.5A/CH current capacity.
  • Dimming Modes: Supports both leading and trailing edge mode for optimal compatibility with various load types.
  • Scalability: Features Parallel channels for forming heavy current output, increasing load capacity when needed.
  • Power Supply: Wide input voltage range of AC100V/240V AC (50/60Hz) for global use.

Application and Safety Functions:

  • Safety & Protection: Integrated Short-circuit protection, Overload protection, Overheat protection, and an Overheat alarm for maximum device and system integrity.
  • Control Logic: Features include Staircase light, Flashing light, Scene control, Sequence control, and advanced Heating control (PWM).
  • Monitoring: Provides Statistics ON time, Status response, and Status recovery functions for detailed monitoring and operational reliability.
  • Manual Override: Manual control for switching and dimming is available for each channel.

2. Technical Details and Installation

Designed for secure and low-power operation within a professional DIN-Rail setup.

  • Installation: Designed for professional 35mm DIN rail installation (Dimensions: 90×144×64mm, Net weight: 412g).
  • Power: KNX bus power (21~30V DC) with a working current of 20mA/30V DC.
  • Housing: Made from flame-retardant nylon, with an IP20 protection rating.

DIN-Rail HDL-M/DM04.1 KNX 4CH 1.5A MOSFET Dimming Actuator
