HDL-M/DM06.1 KNX 6CH 1.5A MOSFET Dimming Actuator: High-Function Lighting Control

The HDL-M/DM06.1 KNX 6CH 1.5A MOSFET Dimming Actuator is a high-performance, DIN-Rail mounted solution for sophisticated lighting control in modern smart buildings. This model offers 6 independent output channels, each capable of handling 1.5A, with a total maximum current of 9A, making it suitable for a wide range of dimmable loads.This dimming actuator provides critical flexibility by supporting both leading edge (recommended for inductive loads) and trailing edge dimming modes. For high-power lighting circuits, channels can be paralleled to form a heavy current output.

Fully compliant with European Safety Standards and KNX protocol, the HDL-M/DM06.1 includes robust safety features such as Short-circuit protection, Overload protection, and Overheat protection, ensuring reliable and safe operation. It also offers manual control for switching and dimming on each channel directly on the device.

1. HDL-M/DM06.1 KNX 6CH 1.5A MOSFET Dimming Actuator: Advanced Dimming and Safety

The M/DM06.1 is engineered with advanced application functions to meet complex lighting design requirements.

Dimming Technology & Flexibility:

  • Channel Count: 6 independent channels with 1.5A/CH current capacity.
  • Dimming Modes: Supports both leading and trailing edge mode for optimal compatibility with various load types.
  • Scalability: Features Parallel channels for forming heavy current output, increasing load capacity when needed.
  • Power Supply: Wide input voltage range of AC100V/240V AC (50/60Hz) for global use.

Application and Safety Functions:

  • Safety & Protection: Integrated Short-circuit protection, Overload protection, Overheat protection, and an Overheat alarm for maximum device and system integrity.
  • Control Logic: Features include Staircase light, Flashing light, Scene control, Sequence control, and advanced Heating control (PWM).
  • Monitoring: Provides Statistics ON time, Status response, and Status recovery functions for detailed monitoring and operational reliability.
  • Manual Override: Manual control for switching and dimming is available for each channel.

2. Technical Details and Installation

Designed for secure and low-power operation within a professional DIN-Rail setup.

  • Installation: Designed for professional 35mm DIN rail installation (Dimensions: 90×216×64mm, Net weight: 521g).
  • Power: KNX bus power (21~30V DC) with a working current of 25mA/30V DC.
  • Compliance: Protection rating of IP20 and housed in flame-retardant nylon.

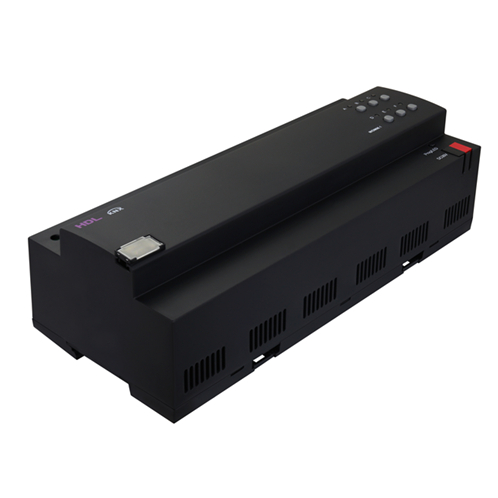

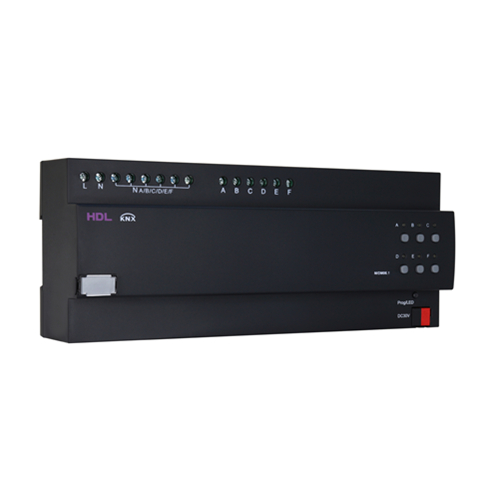

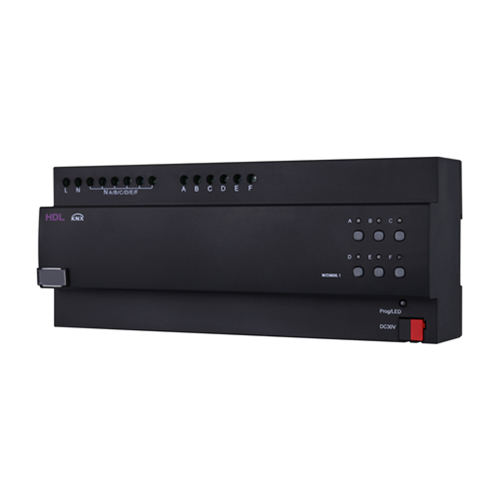

DIN-Rail HDL-M/DM06.1 KNX 6CH 1.5A MOSFET Dimming Actuator
