Description
Introduction

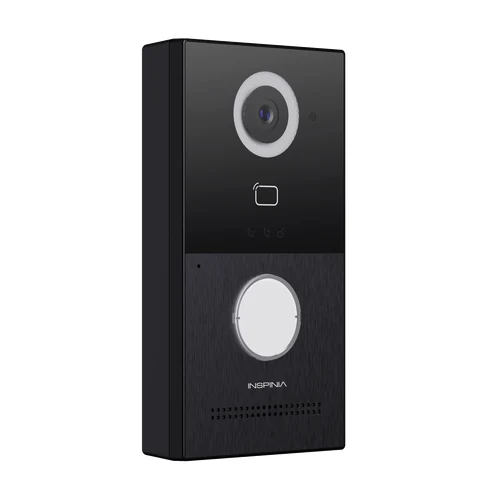

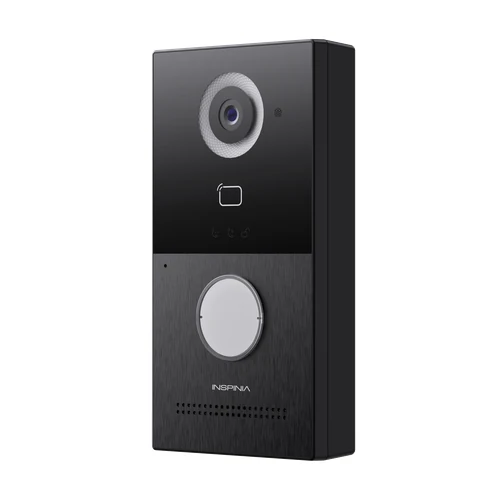

The Inspinia Single Button Outdoor VOIP Intercom (SKU: INS-SB24) is a Linux-based entryway communication terminal designed for secure video door entry and integration into modern IP networks. Featuring a 2MP CMOS camera with 720p resolution, H.264 video encoding, and integrated white LED light compensation, this unit delivers crisp video clarity across wide viewing angles of 110 degrees horizontal and 60 degrees vertical. Equipped with a built-in microphone and speaker utilizing the G.711 codec and active echo cancellation, it provides clear, uninterrupted two-way audio communication. Explore more Inspinia KNX solutions for professional building automation projects.
Engineered for high durability and versatile access control, the INS-SB24 includes integrated dual-frequency card readers supporting both 13.56MHz IC and 125kHz ID credentials, alongside two relay outputs for managing external door locks or auxiliary hardware. Built to withstand challenging outdoor environments with IP65 dust and water ingress protection and an IK06 impact resistance rating, the device offers flexible installation options via Power over Ethernet (802.3af PoE) or a standard DC 12V/2A power supply, making it an ideal choice for residential and commercial building integration.
Key Features
- Linux-based operating system with 64MB RAM and 128MB ROM memory architecture.
- 2MP CMOS camera outputting 1280 x 720 resolution with wide angles (110° H / 60° V / 125° D).
- Dual proximity access reading for IC (13.56MHz) and ID (125kHz) credentials.
- Two output relays and an integrated physical tamper alarm for operational security.
- Audio system with built-in microphone and speaker featuring G.711 codec and echo cancellation.
- Flexible powering via PoE (802.3af) or external DC 12V / 2A supply.
- Network connectivity via 10/100 Mbps RJ45 port supporting SIP, ONVIF, RTSP, UDP, TCP, DHCP, and HTTP.
- Surface mount compact footprint measuring 168 x 88 x 32.5 mm.
Benefits
- Delivers clear 720p HD video using a 2MP CMOS sensor with H.264 compression and LED white light illumination for low-light conditions.
- Provides high-quality two-way audio with G.711 codec support and integrated echo cancellation.
- Supports multiple access control options via dual 13.56MHz IC and 125kHz ID proximity card readers.
- Includes two relay outputs to interface directly with door strikes, gates, or external devices.
- Features a robust outdoor enclosure rated IP65 for weather resistance and IK06 for impact resistance across temperatures from -40°C to +55°C.
- Simplifies wiring and infrastructure requirements with Power over Ethernet (PoE 802.3af) and standard surface mounting.
- Ensures broad network compatibility through standard SIP, RTSP, ONVIF, and IP networking protocols.
Technical Specifications
Applications
- Single-tenant residential entrances requiring secure video door entry and card access integration.
- Commercial building perimeters and secure office entrance points utilizing standard SIP and ONVIF communication protocols.
- Access-controlled gates and door control systems relying on dual relay outputs and RFID credentials.
Installation Notes
- Mount directly to flat exterior surfaces using the surface mounting footprint measuring 168 x 88 x 32.5 mm.
- Connect to the local network using the single 10/100 Mbps RJ45 Ethernet port, providing power over PoE (802.3af) or using a dedicated DC 12V/2A adapter.
- Ensure proper wiring of the two output relays and tamper alarm according to project requirements, verifying that environmental conditions fall within -40°C to +55°C.
Developer Resources
- Supports standard open communication protocols including SIP, ONVIF, RTSP, RTP, UDP, TCP, HTTP, and DHCP for seamless integration into third-party VMS and IP PBX systems.
FAQ
What power options are supported by the Inspinia INS-SB24 outdoor intercom?
The intercom can be powered using Standard Power over Ethernet (802.3af PoE) through the RJ45 port or via an optional DC 12V/2A external power adapter.
What card access formats does the device support?
The unit features dual card reader capability supporting both 13.56MHz IC cards and 125kHz ID cards. For certificates and current technical files, refer to the manufacturer technical documentation.
What are the camera resolution and viewing angles for this intercom?
The INS-SB24 features a 2MP CMOS camera delivering 720p (1280 x 720) video resolution with viewing angles of 110° horizontally, 60° vertically, and 125° diagonally.
Is the Inspinia INS-SB24 suitable for outdoor installation?
Yes, it features an IP65 weatherproof rating, an IK06 impact resistance rating, and operates within a temperature range of -40°C to +55°C.
What is the exact product model?
The order/model code for this page is INS-SB24. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Inspinia.
Conclusion
The Inspinia Single Button Outdoor VOIP Intercom (INS-SB24) combines clear 720p video, RFID credential access, and dual relay control inside an IP65 weatherproof enclosure. Its adherence to standard SIP and ONVIF protocols makes it an excellent choice for reliable IP-based door entry systems. Installers and system integrators can review our become a KNX dealer options.
