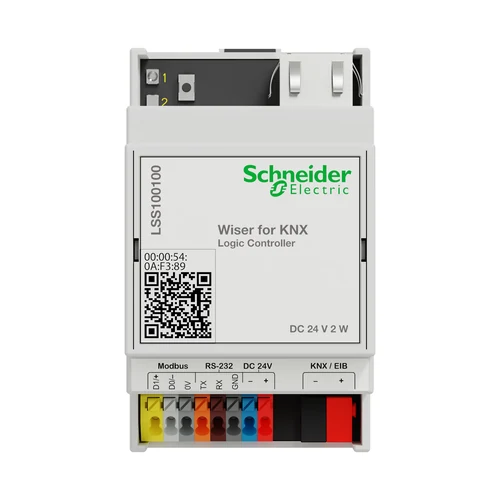

The Schneider SpaceLogic KNX Wiser for KNX (SKU: LSS100100) serves as an all-in-one automation hub that combines logic controller processing, visualization dashboards, and multi-protocol gateway functionality into a single device. Built for smart homes and commercial building management systems, this controller enables seamless cross-protocol communication between KNX, BACnet, Modbus, and standard IP networks. This device is part of our KNX Gateway range.
Designed with integrated energy monitoring and data recording capabilities, the unit includes an internal data logger for trend analysis and automated reporting. Supporting up to 8 concurrent users across PCs, tablets, and smartphones, the LSS100100 offers scalable integration for consultants, system integrators, and facility managers.
Key Features
- Supports up to 150 BACnet tags and 10 Modbus servers
- 10BASE-T/100BASE-TX Ethernet port and 1 USB 2.0 port
- Physical hardware interfaces: 1 RJ45, 1 RS485, 1 RS232, 1 TP-UART2
- LED indicators for CPU load (green) and KNX power/reset (green/red)
- Nominal operating voltage of 24 V DC with IP20 protection class
- Dedicated manual RESET button for hardware control
Benefits
- All-in-One Hub: Combines logic engine, web visualization, and cross-protocol gateway features in a single module.
- Multi-Protocol Support: Connects KNX systems directly with BACnet IP, Modbus, and standard IP networks.
- Energy Monitoring & Analytics: Features a built-in data logger supporting trend analysis and energy consumption reporting.
- Multi-User Accessibility: Supports up to 8 simultaneous users accessing customized web interfaces from mobile devices or PCs.
- Versatile Physical Interfaces: Integrates RS485, RS232, RJ45 Ethernet, TP-UART2, and USB 2.0 connectivity.
Technical Specifications
Applications
- Residential Automation: Acts as the central logic unit and mobile interface server for smart home KNX installations.
- Commercial Building Automation: Bridges KNX field devices to building management systems using BACnet IP and Modbus protocols.
- Energy Tracking & Reporting: Monitors sub-metering data and energy usage trends across building circuits.
Installation Notes
- Requires a 24 V DC power supply and installation in an IP20 environment.
- Suitable for operating ambient temperatures between -5 °C and 45 °C at altitudes up to 2000 meters.
- Ensure correct physical wiring for RS485, RS232, RJ45 Ethernet, and KNX TP-UART2 interfaces according to project schematics.
Developer Resources
- Official Schneider Product Page: https://www.se.com/tr/tr/product/LSS100100/knx-lojik-kontrol%C3%B6r/
- Technical documentation and data sheets available via Schneider Electric developer tools.
FAQ
How many concurrent users are supported on the LSS100100 visualization?
The Schneider Wiser for KNX logic controller supports up to 8 concurrent users simultaneously. Explore more Schneider automation devices for professional building automation projects.
Which communication protocols are integrated into this controller?
It integrates KNX, BACnet (up to 150 tags), Modbus (up to 10 servers), and standard IP protocols.
What physical ports are available for connection?
The controller features 1 RJ45 Ethernet port, 1 RS485 port, 1 RS232 port, 1 TP-UART2 port, and 1 USB 2.0 port.
What power supply is required for operation?
The device operates on a nominal supply voltage of 24 V DC.
What is the exact product model?
The order/model code for this page is LSS100100. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
