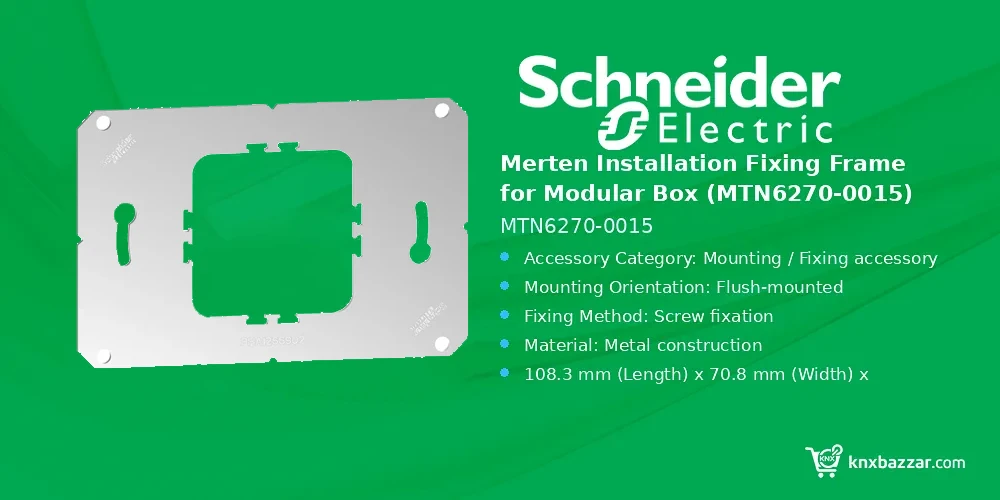

The Schneider MTN6270-0015 is a metal installation fixing frame designed for modular box assemblies within the Schneider Merten product range. Built specifically for flush-mounted structural applications, this mounting accessory provides a rigid metal support base for securing modular components into wall boxes. This device is part of our KNX automation components range.
Engineered to facilitate accurate alignment and mechanical stability, the frame utilizes screw-in mounting to ensure dependable physical attachment. Please note that this item is designated as end of commercialization by Schneider, making exact SKU cross-referencing essential for retrofit and maintenance operations.
Key Features
- Brand and Range: Schneider Merten
- Accessory Category: Mounting / Fixing accessory
- Mounting Orientation: Flush-mounted
- Fixing Method: Screw fixation
- Material: Metal construction
- Dimensions: 108.3 mm (Length) x 70.8 mm (Width) x 1.5 mm (Height)
- Commercial Status: End of commercialization (Discontinued)
Benefits
- Provides a robust metal structural base for flush-mounted modular box installations.
- Ensures exact mechanical alignment through straightforward screw fixation.
- Designed specifically for compatibility with Schneider Merten modular box systems.
- Packaged using environmentally conscious materials with at least 70% recycled cardboard.
- Ideal for direct replacement and maintenance in existing Schneider Merten building automation projects.
Technical Specifications
Applications
- Flush-mounted installations requiring a metal fixing frame for modular box integration.
- Maintenance, repair, and exact component matching in existing Schneider Merten system installations.
Installation Notes
- Verify that the corresponding flush back-box is properly set prior to securing the metal fixing frame via screws.
- Align the 108.3 mm x 70.8 mm frame flat against the mounting surface before final screw tightening.
- Cross-reference original bill of materials and architectural documents to verify exact part replacement due to discontinued status.
Developer Resources
- Official Schneider Electric documentation, CAD drawings, and technical datasheets available via manufacturer portals.
FAQ
What is the purpose of the Schneider MTN6270-0015 frame?
It serves as a flush-mounted metal fixing frame designed to secure modular box components within Schneider Merten installations. Explore more Schneider building automation products for professional building automation projects.
How is the MTN6270-0015 mounting frame attached?
The frame is secured flush into place using standard screw fixation. For certificates and current technical files, refer to the official product documentation.
What are the key physical dimensions and material of this frame?
The frame is constructed from metal and measures 108.3 mm in length, 70.8 mm in width, and 1.5 mm in height.
Is the Schneider MTN6270-0015 still in active production?
No, Schneider has marked this product status as end of commercialization.
What is the exact product model?
The order/model code for this page is MTN6270-0015. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
Conclusion
The Schneider Merten MTN6270-0015 installation fixing frame offers structural reliability for flush-mounted modular box configurations. Installers and system integrators can review our become a KNX dealer options.
Given its end-of-commercialization status, checking exact SKU requirements against original project drawings guarantees seamless system maintenance.
