Description
Introduction

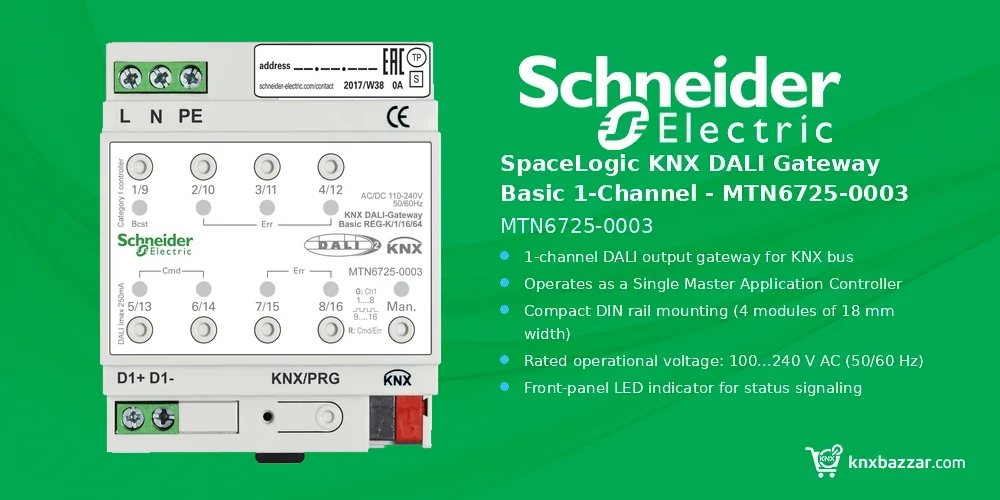

The Schneider MTN6725-0003 is a SpaceLogic KNX DALI Gateway Basic designed to connect a KNX bus line directly to a single DALI output channel. Functioning as a Single Master Application Controller, this device enables central control of lighting networks within automated building systems, optimizing energy usage and delivering significant operational cost savings. This device is part of our KNX automation components range.
Engineered to enhance flexibility, comfort, and security in both new builds and commercial retrofits, the module features updatable software capability and LED status signaling. Mounted on a standard DIN rail, it occupies 4 modules of 18 mm width and supports a nominal operating voltage range of 100…240 V at 50/60 Hz.
Key Features
- • 1-channel DALI output gateway for KNX bus communication.
- • Operates as a Single Master Application Controller.
- • Compact DIN rail mounting (4 modules of 18 mm width).
- • Rated operational voltage: 100…240 V AC (50/60 Hz).
- • Front-panel LED indicator for status signaling.
- • Integrated updatable software function.
- • IP20 protection rating in standard white finish.
Benefits
- • Centralized Energy Management: Connects KNX automation to DALI lighting circuits, enabling optimized power consumption and operational cost reduction.
- • Flexible System Integration: Designed for adaptable installation and reduced configuration effort in KNX building automation projects.
- • Software Updatability: Features updatable software to support ongoing maintenance and compatibility.
- • Compact Module Layout: Compact 4-module width (18 mm each) allows easy integration into standard DIN rail distribution boards.
- • Operational Reliability: Operates within a wide operational voltage range of 100…240 V AC at 50/60 Hz with IP20 enclosure protection.
Technical Specifications
Applications
• Commercial and Critical Buildings: Facilitates centralized DALI lighting management across corporate offices, administrative facilities, and critical infrastructures. Explore more Schneider KNX solutions for professional building automation projects.
• Hospitality and Educational Facilities: Provides flexible lighting control for hotels, schools, and small businesses integrated into a broader KNX network.
Installation Notes
- • Mount directly on standard DIN rails inside suitable enclosure panels, requiring 4 module spaces (18 mm each).
- • Verify rated power supply wiring (100…240 V AC, 50/60 Hz) and adhere to IP20 operating conditions.
Developer Resources
- System integrators and installers can access official Schneider product datasheets and user manuals for ETS parameterization and network setup.
FAQ
What is the function of the Schneider MTN6725-0003?
The Schneider MTN6725-0003 is a 1-channel SpaceLogic KNX DALI Gateway Basic that connects the KNX bus line to a DALI output line for centralized lighting control. For certificates and current technical files, refer to the official Schneider documentation.
What is the operating voltage range of this KNX DALI gateway?
The gateway operates on a rated operational voltage range of 100…240 V AC at 50/60 Hz.
How many modules does the device occupy on a DIN rail?
The unit occupies 4 modules of 18 mm width on a standard DIN rail.
What is the exact product model?
The order/model code for this page is MTN6725-0003. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
Where can I find the official technical documentation?
Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.
Conclusion
The Schneider SpaceLogic MTN6725-0003 KNX DALI Gateway Basic is a compact 4-module DIN-rail device providing reliable 1-channel integration between KNX systems and DALI lighting devices. Installers and system integrators can review our professional project support options.
It is an efficient choice for optimizing operational costs in modern commercial and institutional buildings.
